Video & Moviemaking with the Leica M (Part 3)

This page is about professional sound solutions for the Leica M 240 and how to travel with a very compact video kit.

Since I got the Leica M 240 and decided I would most definitely not use it for video ... a few things have happened. "You have a standpoint untill you take a new", as Danish Prime Minister (1962-68) Jens Otto Kragh stated. Changing your mind is one of the most powerful human abilities.

In short, when apparently wise people in the beginning said the Leica M 240 is a bad solution for video (due to rolling shutter, image quality and expensive wide open lenses), other wise people later said it was a sexy solution to make modern atmosphere videos: And that the rolling shutter, by the way, was something even Canon HDSLR cameras had plenty of. Nobody ever cared.

Those statements may have supported my choice of doing more video, but mainly the possibility to travel with a professional video kit that was both compact and offered a lens choice no one else has. It's not a professional video kit in the sense that it can do all possible videos, but it is a compact kit that I can do the things I choose to do. Whenever I want to tell a story, interview a person or make a short feature for web, I can do it rather easily.





  Leica M 240 sample video


  Leica M 240 sample video: This workshop video compiled of some of the footage we did in Paris and London in 2013 is made with the Leica M 240 handheld, and with just one Sennheiser wireless microphone in use (the microphone and sender on the person, the reciever on the camera connected via the Olympus SEMA-1 in the hotshoe). The video is recorded in black and white. My cameras usual setting is DNG+JPG Fine, and then the Film Mode is set to black & white. The sharpness, contrast and all is set to Standard. This way video is recorded in black and white, and it works. Edited in Final Cut Pro X.


Title: "Thorsten Overgaard Workshops 2014" Feature, Paris and London, 2013
Featuring: James D'Aquila, Younès Kabbaj (interview)
Director: Thorsten Overgaard
Music: Beyoncé: "Credits"
Camera 1: Leica M 240 camera, operated by Joy Villa
Camera 2: Leica M 240 camera, operated by Thorsten Overgaard
Lenses: Leica 21mm Summilux-M ASPH f/1.4 w/B+W Series VIII ND Filter
Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Tripods: Handheld and vintage Hama screw-on pod
Lights: Available light
Sound 1: Sennheiser EW 112-P G3 Wireless Lavalier Microphone
Editing: Final Cut Pro X by Joy Villa







  The Brand New Leica M11 Know-All-eBook by photographer Thorsten Overgaard





Full Leica M240 Pack:
Video Masterclass
+
Street Photography Masterclass

All about the Leica M240 video instruction masterclass (17 videos)
+ Street photography video masterclass
filmed in New York (11 videos).
+ 8 Bonus videos
+ Styles for Capture One for Leica M240
+ Lightroom Presets. for Leica M240


Normal price $1,192.00

Save 60%

Only $476.00

USE CODE: "ILOVEM240"

Add to Cart

Order now. Instant delivery.
100% satisfaction or money back.

Item #1844-1848-0823





Leica M240
Video Masterclass

Two hours of video class
with Thorsten von Overgaard
+
20-page checklist for learning
every corner of the Leica M240.

For Computer, iPad or smartphone.
More info

Only $398.00

Add to Cart

Order now. Instant delivery.
100% satisfaction or money back.

Item #1844-1017










  Award-winning Leica M 240 sample video "Vagabonds"




Leica M 240 sample video: "Vagabonds" written and performed by Princess Joy Villa, appearing on the May 2014 CD "I Am The Static" produced by Barrie Gledden.
Video recorded with one Leica M 240 camera operated byTaufik Pane and Thorsten Overgaard in Bali, Indonesia, March 2014. Edited in Final Cut Pro X with a few extra sparkles added.




Title: "Vagabonds" Music Video, Bali, Indonesia, March 2014
Featuring: Joy Villa (vocals)
Director: Thorsten Overgaard
Music: Joy Villa
Camera 1: Leica M 240 camera, operated by Thorsten Overgaard
Camera 2: Leica M 240 camera, operated by Taufik Pane
Lenses: Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Leica 21mm Summilux-M ASPH f/1.4 w/B+W Series VIII ND Filter
Tripods: Handheld
Lights: Available light
Sound 1: Soundtrack
Editing: Final Cut Pro X by Joy Villa
Awards: "Best Alternative Music Video" by Indie Music Channel, 2015.










  Leica M 240 sample video


  Leica M 240 sample video: This music video was awarded Fan Favorite on Indi.com in the category Original Song Performance, January 2014. "Get Your Freedom" written and performed by Princess Joy Villa, produced by HUOS Music. Video recorded with two Leica M 240 cameras operated by Neville Porter and Thorsten Overgaard in Auckland, New Zeland April 2013. Edited in Final Cut Pro X with a few extra sparkles added. The sound, by the way, was tweaked additionally by Leica M user and music producer Barrie Gledden in his London studio.


Title: "Get Your Freedom" Music Video, New York February 2014
Featuring: Joy Villa (song), Hugh Porter (producer)
Director: Thorsten Overgaard
Music: Joy Villa (composer)
Camera 1: Leica M 240 camera, operated by Thorsten Overgaard
Camera 2: Leica M 240 camera, operated by Neville Porter
Lenses: Leica 21mm Summilux-M ASPH f/1.4 w/B+W Series VIII ND Filter
Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Leica 90mm APO-Summicron-M ASPH f/2.0 w/B+W 55mm 3-stop ND Filter
Leica OUFRO 10mm adapter for macro
Leica 35mm Summilux-M ASPH FLE f/1.4 w/B+W 46mm 3-stop ND Filter
Tripods: Handheld
Lights: Available light
Sound: Soundtrack by Hugh Porter (producer), additional editing by Barrie Gledden, London.
Editing: Final Cut Pro X by Joy Villa













How to get good sound

One of the first barriers to good video is sound (the other two are light and editing).

The built in microphone in the Leica M 240 is good to have, but it picks up the users breathing, the handling of the camera and high pitch sounds from far away: Plates and glasses being handled in the far background seem to be falling right on top of the camera.

The Leica Microphone Adapter Set or Olympus SEMA-1 Microphone Adapter Set (which are essentially the same) is better, but still is placed nearer the camera operator than the usual action.

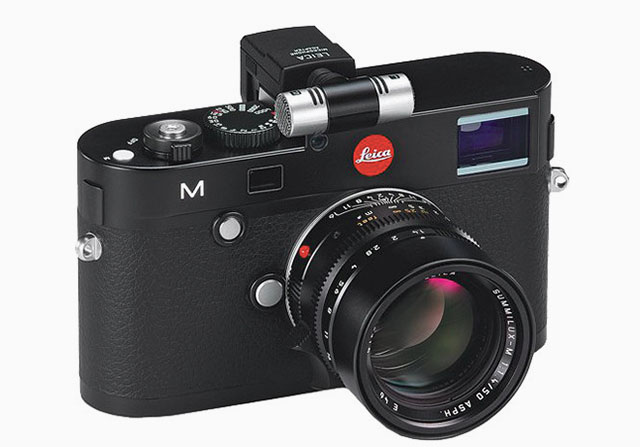

Leica Microphone Adapter Set
The Leica Microphone Adapter Set mounted on the Leica M 240. Also the Olympus SEMA-1 can be used (which is 1/5 of the price)

One can add a cable to the stereo microphone so as to place it on or near by the subject, for example for an interview. It may work, but take into account that the cable should be a couple of meters minimum (7 feet) to enable you making video at a minimum of one meters distance with for example a 50mm lens.






Buy the new eBook
"The Freedom of Photographic Expression"
by Thorsten Overgaard





"The Freedom of Photographic Expression" by Thorsten Overgaard

"The Freedom of
Photographic Expression"
eBook for computer, Kindle and iPad
October 2016 (268 pages)



In this easy to read and apply eBook,
Thorsten Overgaard takes beginners and experienced photographers through the basics of controlling the light and the camera.
This book covers the technical side of photography from beginners level to semi-pro, features a number of photographs by Thorsten Overgaard and chapters on his philosophy on photography.

Only $148




Buy Now

Add to Cart

Instant Delivery




View Cart






"I've bought the new book - made a start reading it - it is really interesting.
I know it’s basic at the beginning but it isn't written in a patronizing way. I have been taking photographs for many years and have been lucky enough to be paid to take them for the last seven years; but it's always good to be taken back to the start"
P. S. (UK)



""Really enjoy your writing and teaching"
D. K. (USA)

"I love your insights on photography."
D.B. (USA)

★ ★ ★ ★ ★ ★








One of my first attempts to use the 3 feet long cable that the Olympus SEMA-1 Microphone Adapter Set comes with. I had the privileged to interview Jose about his personal experiences with Ansel Adams using my 21mm lens. The 50mm with a minimum focusing distance of 1 meter was simply not compatible with the cable! It's not that it is totally awful, it just doesn't offer the freedom of composition you would want, and it isn't as pretty as I had imagined it with a Noctilux and the background gone.

The Mini Jack female plug that reveals itself when one takes off the actual stereo microphone of the Leica Microphone Adapter Set is useful to connect other things. When I realized what a pain cabled microphones are for interviews, I bought a wireless Sennheiser clip-on microphone so the subject is not connected to the camera.



Leica M Type 240 with Leica 50mm Noctilux-M ASPH f/0.95
The female Mini Jack plugin on the Olympus SEMA-1 on top of the camera.



The one I bought is one I had years ago when I had a video camera, the Sennheiser EW 112-P G3 Wireless Microphone System with Lavalier Microphone. I also bought extra windscreens (as those get lost easily), the Lavalier Accessory Backup Kit.



  Leica M 240 sample video


  Inside Leica Store Vienna with Peter Coeln (On The Road With Thorsten von Overgaard)


Title: Inside Leica Store Vienna with Peter Coeln, Vienna, September 2013
Featuring: Peter Coeln and Joy Villa (interview)
Director: Thorsten Overgaard
Music: DAFTHPUNK: “Lose Yourself to Dance” / Trentemøller: “Shades of Marble”
Camera 1: Leica M 240 camera, operated by Thorsten Overgaard
Lenses: Leica 21mm Summilux-M ASPH f/1.4 w/B+W Series VIII ND Filter
Leica 50mm Noctilux-M ASPH f/0.95
w/B+W 62mm ND Vario Filter with stepup
Leica 90mm APO-Summicron-M ASPH f/2.0 w/B+W 55mm 3-stop ND Filter
Leica OUFRO 10mm adapter for macro
Tripods: Manfrotto 334B Automatic Monopod and vintage Hama screw-on pod
Lights: Available light
Sound: Sennheiser EW 112-P G3 Wireless Microphone System with Lavalier Microphone
Editing: Final Cut Pro X by Joy Villa





We did the above video interview with the founder and owner of Leica Shop Vienna, Peter Coeln with this Sennheiser microphone attached to him. And then when Joy or I enters the frame, we just talked loud enough in the direction of the microphone on Peter Coeln for it to record our voices too.


The external sound recorder Zoom H6 and the Sennheiser EW 112-P G3 Wireless Microphone System with Lavalier Microphone consisting of Transmitter (on the person) and Reciever (on the camrea).



  Leica M 240 sample video


  Leica M 240 sample video: The award-winning video Electric Coffee Company by Edmond Terakopian


Title: "Electric Coffee Company" Corporate Video, London, November 2013
Director: Edmond Terakopian
Camera 1: Leica M 240 camera, operated byEdmond Terakopian
Lenses:

Leica 28mm Summicron-M ASPH f/2.0 w/Lee RF75 filter holder + Lee ND filters
Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Leica OUFRO 10mm adapter for macro
Leica 35mm Summilux-M ASPH FLE f/1.4 w/B+W 46mm 3-stop ND Filter

Tripods: Manfrotto 561BHDV-1 Video Monopod and Gitzo video tripod
Lights: Available light
Sound 1: Roland R-26 Digital Audio Recorder
Sound 2: Rode Lavalier Microphone (interview)
Sound 3: Ambient sound with Leica M 240 internal camera microphone
Editing: Final Cut Pro X by Edmond Terakopian
Color grading: Partially color graded in "Color" by Neil Patience.
Final grading with Final Cut Pro X and Film Convert








  Leica M 240 sample video


  Leica M 240 sample video: Eva Maria by Daniel Maissan


Title: "Eva Maria" Non-Profit Documentary/Travel Video, Cuzco, Peru, 2013
Featuring: The 4-year old autistic girl Eva Maria and the therapists of Abrazos, the foundation that helps families with the upbringing of autistic children.
Director: Daniel Maissan
Camera 1: Leica M 240 camera, operated by Daniel Maissan
Lenses: Leica 35mm Summicron-M ASPH f/2.0
Leica 50mm Summicron-M f/2.0
Tripods: Handheld
Lights: Available light
Sound 1: Leica M 240 camera microphone
Editing: Daniel Maissan




More microphones

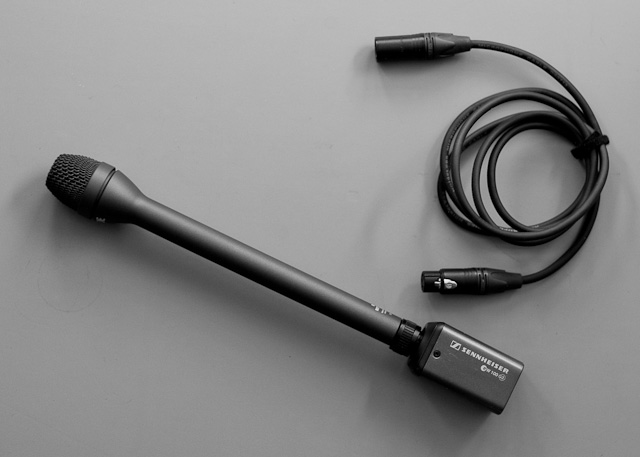

I realized we sometimes needed a regular reporters microphone, so we bought the Rode Reporter Omnidirectional Handheld Interview Microphone for "world news" events where we would put the microphone on a table (for press events for example), or to interview people with a handheld microphone.


Robin Isabella with the Rode Reporter microphone with XLR cable attached, waiting for her friend Justin.

To be able to use a reporters microphone, I looked at other possibilities to have several microphones. Some times you have two or more persons, some times you need to record from a table, a speaker or an instrument.

The prospect of having a bunch of cables attached to the Leica M 240 mini jack on top of the camera with a splitter to 2-3 microphones didn't seem tempting, nor practical. So when I learned that an external recorder would record in better quality than any internal recording in any camera, I got the Zoom H6 external recorder that records on a SD-card. It is lightweight and easy to travel with and offers up to 5 microphones connected. The idea was that it could basically lay on a chair outside the frame, or even be in the interviewers handbag in the cases where we would move around from location to location or would use a cable from the reporter microphone down to the recorder in the handbag.

Separating sound from camera is a great thing when it is so easy to lay sound tracks and video tracks on top of each other in Final Cut Pro X.

ZOOM H6 Recorder Kit

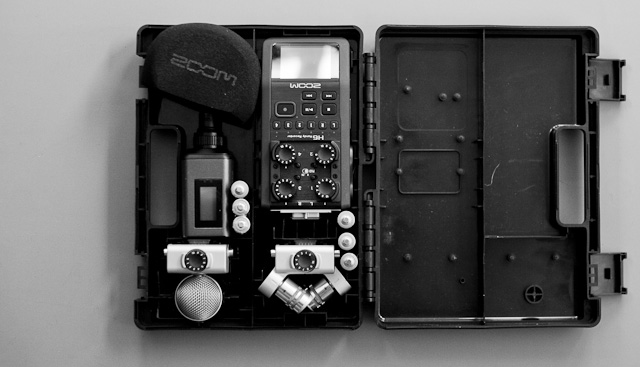

The Zoom H6 comes in a handy little case that now has a space in the corner of my suitcase most places I travel. It has a little extra space for extra batteries, as well as the XLR wireless Sennheiser W100 Sender from my other kit. The wireless microphones I pack in pairs in the small bags you some times get in airplanes.

Leica M 240 as reportage video camera

It's interestting to see what the Leica M 240 is capable of doing, not because it is a video camera that may or may not be great on overall specifications, compared to Canon 5D, but because you equip Leica M photographers with video.

One such example is award-winning photographer and film-maker for the Guardian, Sean Smith who did stills and video of "Funny Girls" for The Guardian: "In the last few years, at last, Leica have made up for lost time. With the new M Type 240, it has produced a camera that could be as revolutionary for documentary video as its first camera was for still photography.

"What makes the new Leica so special is that the rangefinder gives the intimacy of a small camera, but you also get its legendary lenses. I think a new kind of journalistic video will be able to take a very large step forward thanks to the M type 240, and the new video function on this camera could be as important as those early Leicas".



  Leica M 240 sample video


  Funny Girls: behind the scenes at Blackpool's longest-running drag revue. Made by Sean Smith for The Guardian


Title: "Funny Girls"" documentary, 2013
Featuring: Funny Girls
Director: Sean Smith
Camera 1: Leica M 240 camera, operated by Sean Smith
Lenses:
Tripods: Handheld
Lights: Available light
Sound 1:
Sound 2:
Editing: Sean Smith

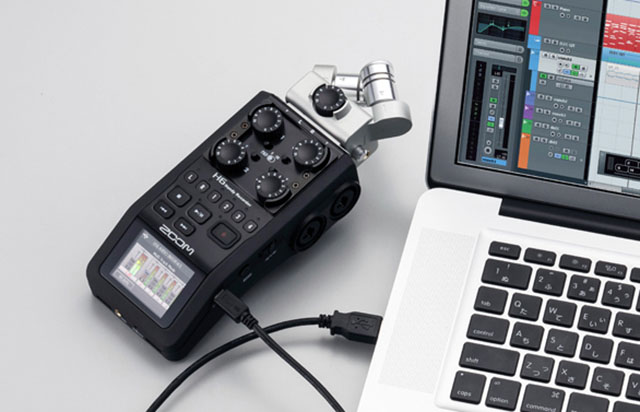

Zoom H6 Portable Recorder Field Kit that comes with a hardcase is ideal for external sound recording. It comes with two stereo microphones (XY Microphone for environment and atmosphere, and Omnidirectional microphone for speech/interview). A Zoom SGH-6 Shotgun Microphone can be added for directional sound recording. Apart from the built-in stereo microphone (that's the modules above), it has space for four channels of XLR-connected microphones. It records on a SD-card, nicely sorted in folders for each channel, with date and time stamps.


The Zoom H6 is really portable.


Flexibility in a compact kit

To adjust the microphones individually for each channel on the recorder I use my Shure 535 in-ear headphones that I anyways travel with. Also extremely compact, yet very good sound quality.

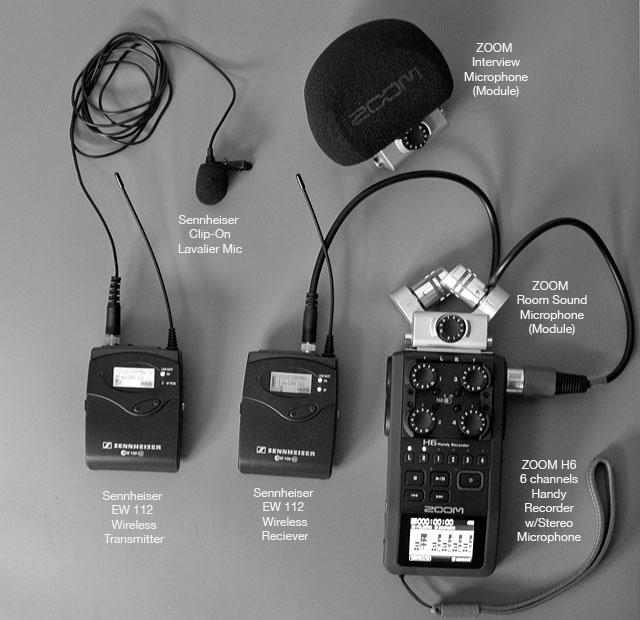

But I anyways wanted to have at least two Sennheiser wireless clip-on microphones in the cases where I would interview a person off camera, or where two persons would be talking in the frame.

And to add wireless capabilities to the reporter microphone as well, I got the Sennheiser Sennheiser EW 100 ENG G3 Combo with both a clip-on microhone as well as a wireless XLR that can be used on the reporters microphone or any stage microphone that uses XLR (and they basically all does).

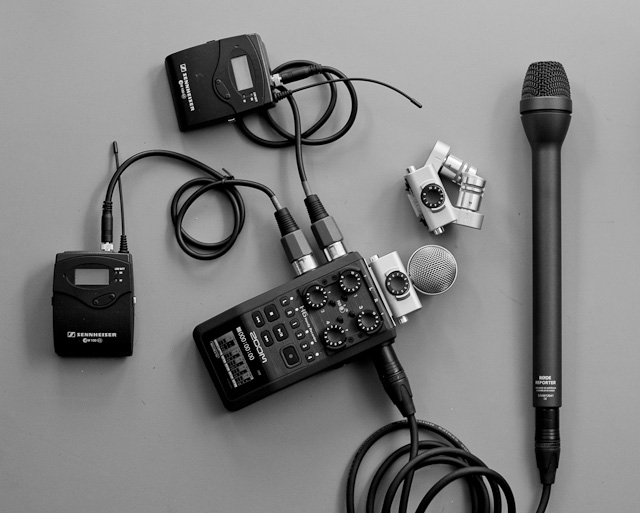

Four microphones: The flexible kit with two wireless recievers into the Zoom H6 that also features a stereo microphone on top of it, and then two more XLR connections, in the photo above the Rode Reporter microphone is used in that one.


Wireless Reporter: The Rode Reporter (or any other XLR microphone) can be made wireless thanks to the the wireless XLR sender that comes with the Sennheiser EW 100 Combo

Batteries is one of the things microphones need. 6-8 batteries fit in the hardcase for the Zoom H6, and you don't want to travel with too many as they are heavy and are widely available. But you need enough to feed the microphones when you are in the midst of a recording.



  Leica M 240 sample video


  Leica M 240 sample video: "The Story of Maibritt Kokholm"


Title: "The Story of Maibritt Kokholm" Documentary, Denmark, April 2013
Featuring: Maibritt Kokholm
Director: Johnnie Behiri
Music: The music bed
Camera 1: Leica M 240 camera, operated by Johnnie Behiri
Camera 2: Leica M 240 camera, operated by Thorsten Overgaard
Camera assistants: Claudia Würtl and Joy Villa
Lenses: Leica 35-70 Vario-Elmarit-R ASHP f/4.0
Leica 21mm Summilux-M ASPH f/1.4
w/B+W Series VIII ND Filter
Leica 35mm Summicron-M ASPH f/2.0
Leica 50mm Summicron-M f/2.0

Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Leica 90mm APO-Summicron-M ASPH f/2.0 w/B+W 55mm 3-stop ND Filter
Leica OUFRO 10mm adapter for macro
Tripods: Mini skater and tripod
Lights: Available light and Litepanels Sola ENG kit
Sound 1: Sennheiser G2 wireless set
Sound 2: Sanken COS-11D Omnidirectional Lavalier
Editing: Adobe Premiere CS6 by Johnnie Behiri
Color grading: No color correction or sharpness added in post




Compact travel

The headline for all I do is compact travel. The videographers I know travel with a large tripod bag and between one and three backpacks with cables, microphones, batteries and what have you.

I travel with one or two Leica M bodies and up to four lenses, and I would like to keep it as simple and lightweight as that.

The video in the Leica M 240 is an added feature, so the the question is how one can utilize that to produce mindblowing videos without having to invest in a donkey.

How to get a stable image

The second barrier to video is that it is not a still, but a recording of everything! Every movement, every shake, every thing crossing in the front or background, is recorded and can't be edited or photoshopped. One has to plan the sequence in advance to maintain control.




Jason Jellick filming with the Leica M 240 and Leica 50mm Summilux-M ASPH f/1.4 in New York. Once you get the hang of it, the camera sits very stable and soft in the hands, and you can follow focus by using the EVF.



One way of stabilizing is to not use the screen on the back of the camera, but to use the Leica Visoflex EVF2 Electronic Viewfinder. It is much easier to focus and maintain focus using the EVF as the image you see in front of your eye is relatively much bigger than looking at the screen on the back (In the EVF the image almost fills your whole view, as in a cinema).

Using the Leica Visoflex EVF2 Electronic Viewfinder stabilizes the camera a great deal, and I have developed a style of "sailing back and forth slightly" to get the motion of handheld camera, but without the sudden shakes and small shaky movements that holding a camera out in your arms in front of you causes.




Filming handheld whilst 'sailing' with the camera. Photo by Jason Jellick, New York February 2014.

If you try to hold the camera very still in stretched arms so you can see the screen on the back, your muscles will eventually cramp and create shakes. Holding the camera close to the body while 'sailing' or 'swirling' in a natural movement from side to side makes it possible to told the camera in a relaxed way that also frees one hand for changing the focus.





  Leica M 240 sample video


  Leica M 240 sample video: This workshop video compiled of some of the footage we did in Paris and London in 2013 is made with the Leica M 240 handheld, and with just one Sennheiser wireless microphone in use (the microphone and sender on the person, the reciever on the camera connected via the Olympus SEMA-1 in the hotshoe). The video is recorded in black and white. My cameras usual setting is DNG+JPG Fine, and then the Film Mode is set to black & white. The sharpness, contrast and all is set to Standard. This way video is recorded in black and white, and it works. Edited in Final Cut Pro X.


Title: "Thorsten Overgaard Workshops 2014" Feature, Paris and London, 2013
Featuring: James D'Aquila, Younès Kabbaj (interview)
Director: Thorsten Overgaard
Music: Beyoncé: "Credits"
Camera 1: Leica M 240 camera, operated by Joy Villa
Camera 2: Leica M 240 camera, operated by Thorsten Overgaard
Lenses: Leica 21mm Summilux-M ASPH f/1.4 w/B+W Series VIII ND Filter
Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Tripods: Handheld and vintage Hama screw-on pod
Lights: Available light
Sound 1: Sennheiser EW 112-P G3 Wireless Lavalier Microphone
Editing: Final Cut Pro X by Joy Villa








Tripods

Tripods comes in many complicated constructions whereof very few are simple and sturdy. Simplicity is a concept that hasn't really had a big breakthrougth in videography.

A tripod should be simple and very steady. To illustrate the ideal for what we are looking for, let me examplify it with Danish furniture design:


The Wegner "Presidental Chair" that was used by John F. Kennedy in the famous presidential debate between JFK and Nixon. This is how simple, pleasing and stable, something holding a body should be. It is almost mandatory equipment in any Danish home (along with all the Danish design classics such as LEGO bricks, Paul Henningsen lamps, Bodum french press for coffee and and Bang & Olufsen televisions).



Now, we realize that the manufacturers of tripods either have surpassed this level of usability, or haven't arrived at it yet. With the exception of perhaps the Leica Tabletop Tripod that is lightweight, stellar industrial design, stable as a rock, and compact.

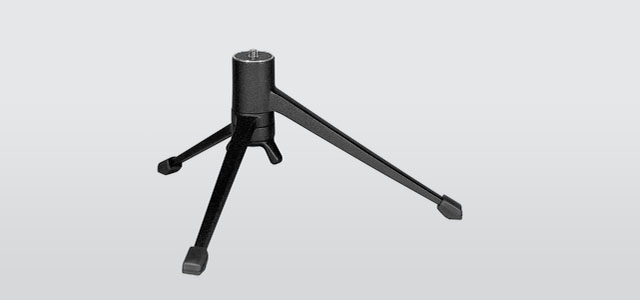

The Leica Tabletop Tripod is simply this. One can attach the ballhead on top of it to be able to adjust it.



Now, this table tripod doesn't get us up in a high level, and it doesn't work unless it is standing on something completely horizontal. We need to be able to adjust the level of the frame and have the camera higher up. But it might be a good beginning.

  Leica Ballhead


But how to adjust the camera vertical/horizontal other than by putting something under the legs of the table tripod? I have the Leica Ballhead, the older one that is smaller than the current one, but made of massive brass. It is great for quick and stable position-lock of the camera in any vertial/horizontal position, but it is also such a massive piece of metal that it always attracts the attention of security in airports. It has the weight of a lens.

A stable tripod for a still camera is quite a heavy piece of work. They are huge, heavy and expensive. And if they are less heavy, they are even more expensive! A video tripod should ideally have a soft pan head for soft and seamless vertical and horizontal pan, and this is a completely different class of tripods than the ones for still cameras.

I occasionally joke that "the tripod game is a game you can't win". The better tripod, the larger and heavier it is.

Now, what I found to solve my quest for portability and simplicity, I found for 10 Euro ($15) in a dark corner of Leica Shop Vienna. A vintage Hama screw-on monopod that is made of titanium or aluminium:




My vintage 10 Euro rig on location in Paris. Photo by Per Hildebrant, September 2013. Here the camera is equipped with the Sennheiser wireless reciever connected to the Leica Microphone Adapter, and the camera strap is wrapped to the window frame for security.




The Leica M 240 on top of the combined tripods, with the Sennheiser EW 112-P G3 Wireless Microphone System with Lavalier Microphone Reciever (on the camrea).



The two tripods combined also make me able to adjust the horizontal and vertical position as there is a small ballhead. Though that I find that I mostly just screw the monopod onto sometning. When I want to tavel extremly light, I simply leave the table tripod at home and go with the screw-on alone. It works.

For the Peter Coeln video on top of the page, I would simply screw the monopod onto a chair, shelf, table or other and leave it there for the duration of the clip. It's compact, stable and easy to travel with and set up.




My two tripod pieces also can hold the Zoom H6 microphone and recorder when it has to be used as a microphone for podcasts, or places in front of a speaker. (The booklet placed horizontal below the microphone is to reduce sound from a keyboard when doing podcasts).





  Leica M 240 sample video


  THE LAST JOURNEY - a passion for steam by Daimon Xanthopoulos


Title: "THE LAST JOURNEY - a passion for steam" Documentary, August 2013
Featuring: Pete
Director: Daimon Xanthopoulos
Camera 1: Leica M 240 camera, operated byDaimon Xanthopoulos
Lenses:
Tripods:
Lights: Available light
Sound 1:
Sound 2:
Editing: Final Cut Pro X b Daimon Xanthopoulos
Color grading:








Thorsten Overgaard Workshops





  Leica M 240 sample video


  Leica M 240 sample video: Israeli singer-songwriter Cali Rivlin. Here is a video done simply by placing the Leica M 240 on the piano, using the internal microphone. Opened in Quicktime and uploaded to Vimeo straight from Quicktime without any editing. A setup as simple as an iPhone. I could think of many things it could be used for, but also how much better it would be if I had used an external microphone or two (one for the piano and one for the speaker with the sound), and a tripod.


Title: "Cali Rivlin - Live" Music Video, August 2013
Featuring: Cali Rivlin (song and Yamaha piano)
Director: Thorsten Overgaard
Music: Cali Rivlin
Camera 1: Leica M 240 camera, operated by Thorsten Overgaard
Lenses: Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Tripods: Resting on piano
Lights: Available light
Sound 1: Leica M 240 built in camera microphone
Editing: None










  Leica M 240 sample video


  Leica M 240 sample video: Axel Winter performing "Let Her Go" by Passenger in Sydney, April 2013. Recorded handheld on the street with the Leica M 240 and Leica 50mm Noctilux-M ASPH f/0.95 at f/0.95, using the internal camera microphone only.


Title: "Let Her Go" Music Video, April 2013, Sydney.
Featuring: Axel Winter (vocals and guitar)
Director: Thorsten Overgaard
Music: Passenger (composer)
Camera 1: Leica M 240 camera, operated by Thorsten Overgaard
Lenses: Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Tripods: Handheld
Lights: Available light
Sound 1: Leica M 240 built in camera microphone
Editing: None






Panning shoes

The loyal readers of my page may recall I talked about the need for 'pan shoes' for extra sexy panorama shots with video. Now, see what I found in the Louboutin store in Jakarta, my personal panning shoes from the God of Stilettos, Christian Louboutin. I have at least one art director who requested a photo of them to hang on their office wall in Los Angeles after she saw me wearing them for a meeting with her editor. Maybe they are not ideal for panning, but they sure are over the top gorgeous, ha ha!


My Christian Louboutin "panning shoes" for extra smooth panning. Photo by Peter Wais, San Francisco February 2014.





  Leica M 240 sample video


  Leica M 240 sample video: Another winning M240 music video, awarded both Second Place and The Judges Choice on Indi.com in the category Original Song Performance, February 2014. "Run and Hide" written and performed by Princess Joy Villa, featuring Zach Banks on guitar. Video recorded with two Leica M 240 cameras operated by Neville Porter and Thorsten Overgaard in both Auckland, New Zealand and Cleartrack Studios, Florida. Edited in Final Cut Pro X. The sound, by the way, was tweaked additionally by Leica M user and music producer Barrie Gledden in his London studio.


Title: "Run and Hide" Music Video, New Zealand and USA, 2013
Featuring: Joy Villa (vocals) and Zach Banks (guitar)
Director: Thorsten Overgaard
Music: Joy Villa (composer)
Camera 1: Leica M 240 camera, operated by Thorsten Overgaard
Camera 2: Leica M 240 camera, operated by Neville Porter
Lenses: Leica 21mm Summilux-M ASPH f/1.4 w/B+W Series VIII ND Filter
Leica 50mm Noctilux-M ASPH f/0.95 w/B+W 62mm ND Vario Filter with stepup
Leica 90mm APO-Summicron-M ASPH f/2.0 w/B+W 55mm 3-stop ND Filter
Leica OUFRO 10mm adapter for macro
Leica 35mm Summilux-M ASPH FLE f/1.4 w/B+W 46mm 3-stop ND Filter
Tripods: Handheld
Lights: Available light
Sound 1: Soundtrack
Sound 2: Leica M 240 built-in camera microphone
Editing: Final Cut Pro X by Joy Villa






Adding movement to videos

One of the reasons one can do without a large tripod with panning head is that you can crop, zoom in and add movement in Final Cut Pro X with Ken Burns effect.

You can add a tighter cop to a frame if you see you need it, you can zoom in, and you can pan within a video frame or a still frame.

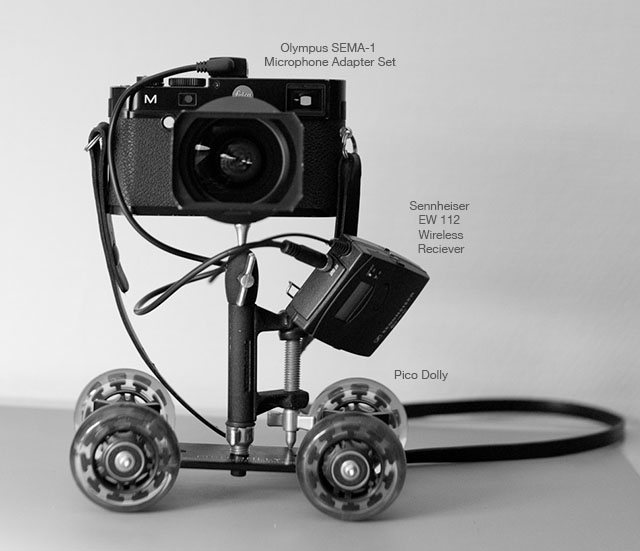

This setup with the Leica M 240 on a Pico Dolly can be used to make some movement to a still photo. The wheels can also be set to the Pico Dolly drives in a large or small circle around an object. It some times comes with the 7" Articulating Arm, but else get it with it. It is not quite strong enough for the Leica M 240 in other than upright position, but it's nice to have the arm if you use a Leica D-Lux 6 or other smaller camera as well.







Advertisement:
The Lightroom Survival Kit



Leica Cine Lenses on the Leica M 240

The prototype adapter for using Leica Cine Lenses on the Leica M 240 exist, and in spring 2014 it should be available. So for the ambitious moviemaker, rent or buy Leica Cine Lenses for your Leica M 240 video projects.

Also, some directors use the Leica M240 as Directors Scope. But mainly they are for ambitious setups such as RED cameras.

The Leica C lenses for moviemaking have been in the horizon since Photokina 2010, but delivery is occuring now. The set is sold in a case with six lenses, and only as a set. The expensive Summilux set is $200,000, the less expensive is the Leica Summicron T2.0 Lens Set for $101,000.

Leica Cine Lenses
The Leica Cine Lenses are produced and marketed by CW-Sonderoptik GmbH in Wetzlar but on display in for example Leica Store Los Angeles.



Leica M 240 camera settings for video

The shutter time is always set to 1/45 which will result in that the camera film in 1/50 second. This is the standard time for video. This also means that video is very light sensitive. You don't need a lot of light to do video, and outdoor you usually need ND-filters to keep the lens wide open and/or to be able to shoot video at all.



Leica M 240 Menu settings for video

This is the basic setup I recommend.

There is a SET and a MENU button on the back of the camera.

The SET screen is quite simple one screen:

SET screen 1 of 1
 SET
200
White Balance Automatic
File Format DNG + JPG fine
JPEG Resolution Off
Video Resolution 1080p@25fps
Exposure Compensation Off
Exposure Metering Center-weighted
User Profile ---



* If you live in the US or Japan, the Video Resolution should be 1080p@24fps.



MENU The MENU screen consist of five screens.

Notice that as you scroll down the menu, the page indicator on the left changes (yellow here but white on the camera), and the subject/title on the top of the page changes:

Menu screen 1/5 "Camera"
 MENU  CAMERA
Automatic
Self Timer 2 s
Light Metering Mode Classic
Exposure Bracketing Off
Flash Sync. Mode Start of Exp.
Auto Slow Sync. 1 / focal length





Menu screen 2/5 "Image"
for BLACK AND WHITE VIDEO:

 MENU  IMAGE
Standard
Saturation Standard
Contrast Standard
Film Mode Black-and-white
Color Space sRGB
DNG Compression On



Menu 2/5 for COLOR VIDEO: (Remember to set the white balance manually on the SET screen)

 MENU  IMAGE
Off
Saturation Off
Contrast Off
Film Mode Off
Color Space sRGB
DNG Compression On




Menu screen 3/5 "Setup"
 MENU  SETUP
Medium
EVF Brightness Medium low
Frameline Color Red
Focus Peaking On
Focus Aid Automatic
Histogram Standard
Clipping Definition 2 / 253
Auto Review 1 s


Menu screen 4/5 "Setup"
 MENU   SETUP
Off
Image Numbering LEICA / L100
Horizon
Sensor Cleaning Off
GPS On
Audio Standard / Off




Menu screen 5/5 "Setup"
 MENU  SETUP
2 minutes
Date / Time 2 s
Acoustic Signal Off
Language English
USB Mode PTP
Reset
Format SD Card
Firmware 2.00.1.2





A lesson learned

Now, one important lesson learned doing a few videos from press conferences and other events is that I thought I could set up a microphone and a camera, start recording and then go about to do my still photos. Sometimes you can, but often you will realize that somebody stood in front of the video camera some of the time, or that the battery ran out midway, or the focus changed during recording (the person moved).
The lesson learned: A video camera always needs attention from someone
. And sound basically also does. It's not that it couldn't work. It is just that, if you want to be as much in control of the video quality as you are used to being in control of your still photos, you need more eyes and hands.

A real life example of how a video camera can't manage itself:

Well planned and set for the press conference with the Danish Queen and her husband, the Prince. Looking good!   The instant Joy Villa asks the Queen a question, of all people, the press officer of the event stands in front of the camera. Who could have imagined?








Continues on page 38 -->

"The way I use the Leica M 240"


















Leica M240 Definitions


  By Thorsten von Overgaard

  More resources:
  Leica and Photography Definitions
  Leica Camera Compendium article by Thorsten Overgaard
  Leica Lens Compendium article by Thorsten Overgaard




  1:2/50 the description says.
But what does it mean?
  1:2/50 the description says.
But what does it mean?


1: = Basically means 1 divided with. On the lens to the right, it means that the diameter of the hole throught he lens is 25mm.
We would normall call it a 50mm f/2.0 lens. The writing of 1:2/50 is a tradition from the 1800's of specifying a lens, which reveals quite a bit about the construction:
Focal length 50mm simply means that the distance from center of focus inside the lens to the focusing plane (the sensor or film) is 50mm, and the aperture of f/2 or 1:2 means that the diameter of the hole the light comes throught is 25mm (50mm divided with 2 = 25mm).
In traditional lens design, one could usually tell from looking at the length of a lens if it was a 400mm, 100mm or 35mm. Newer designs with mirrors (in tele lenses) and more corrections (in wide lenses) can make the size of the lenses shorter or longer, but the distance from center of focus to sensor in a modern 50mm lens will still be 50mm for a 50mm and 400mm for a 400mm, and so on.
See Focal length and Aperture further down for more.



35mm

a) 35mm lens is a lens that has a viewing angle of view is 63°vertically, 54° horizontally and 38° vertically within a 35mm film frame or "full-frame" 24x36mm digital format. See Focal length further down.
b) 35mm focal length: the distance from center of focus inside the lens to the focusing plane (the sensor or film) is 35mm.

  35mm film format (also known as full-frame) © Thorsten Overgaard
  35mm film format (also known as full-frame)


c) 35mm film format (also known as full-frame in digital sensors) was a standard film format that came about in 1892 where the width of the film roll was 35mm, and it's been the most used format ever since. Only a format of 24 x 36mm is used for the photo on the film roll.
35mm film format was first used in 1892 by William Dickson and Thomas Edison for moving pictures with frames of 24 x 18mm, using film supplied by George Eastman (Kodak), and this became the international standard for motion picture negative film in 1909. Later other motion picture formats came about, such as Academy Ratio (22 x 16 mm), Widescreen (21.95 x 18.6 mm), Super 35 (24.89 x 18.66 mm) and Techiscope (22 x 9.47 mm).
The inventor of the Leica camera, Oskar Barnack, built his prototype Ur-Leica in 1913 as a device to test film stock and\ motion picture lenses and had it patented. Putting 35mm film format into a small camera gave him the idea "small negative, large print" and he decided to increase the size of each frame on the 35mm film to 24x36mm (for more detail and sharpness), and then invented an enlarger to make large prints from the small negative. The length of a film, 36 pictures, is said to have become the standard because that was how far Oskar Barnack could stretch his arms (when cutting film from larger rolls to put them into film rolls for the Leica camera).
d) 35mm equivalent is often given as a standard when talking about lenses in small compact-cameras or large format cameras with other sensor/film format than the 24 x 36mm frame. Example: A camera with a 12 x 18 mm sensor has a 14mm lens on it, and even the lens is actually a 14mm, it is specified as a 28mm lens because the viewing angle that ends up on the sensor is equivalent to a 28mm lens on a 35mm of full-frame camera.



  The Leica 50mm APO-Summicron-M
ASPH f/2.0 lens
  The Leica 50mm APO-Summicron-M
ASPH f/2.0 lens


50mm

a) 50mm lens is a lens that has a viewing angle of view is 47° vertically, 40° horizontally and 27° vertically within a 35mm film frame.
b) 50mm means there is 50mm from the center of focus inside the lens to the focal plane (sensor or film).
c) 50mm lens is often compared to the human eye. Not because of viewing angle (how wide it sees) but because of size ratio (how it sees). The 50mm lens is the lens that comes closest to the size that the human eye see things. Whereas the human eye has a much wider angle of view [120-200°] than the 50mm lens [47°].









AF = Auto Focus. The idea is that the camera does the focusing itself (the word auto comes from Greek "self").

Aperture = The same function as the iris and pupil has in the eye. The pupil in the eye is the dark circular opening in the center of the iris of the eye, varying in size to regulate the amount of light reaching the retina (the sensor area inside the eye).
Aperture on a camera is the f/ stop on the camera that regulates how much light passes through the lens by increasing or decreasing the hole through the lens. On a f/2.0 lens the lens is fully open" at f/2.0. At f/2.8 the aperture inside the lens make the hole through the lens smaller so only half the amount of light at f/2.0 passes through. For each f/-stop (4.0 - 5.6 - 8.0 - 11 - 16) you halve the light. The aperture of the lens is basically the focal length divided with the f/-stop = size of the hole (50mm divided with f/2.0 = the hole is 25 mm in diameter).
Besides regulating the amount of light (so as to match the correct exposure), the aperture also affects the dept of field: , which is how deep the sharpness is. To get the sough-after photos with narrow depth of field where the background is blurry, the lens has to be wide open at f/2.0 or so. Stopping the lens down to f/8 or f/16 will result on more depth of field, meaning the background will start becoming in focus. To maintain narrow depth of field, one can use the ISO sensitivity and/or the shutter speed to match the correct exposure (as aperture is only one of three ways to control the exposure; the correct amount of light).
ORIGIN: Late Middle English : from Latin apertura, from apert- ‘opened,’ from aperire ‘to open’.

The aperture blades inside the consist of a number of blades that - as the aperture ring on the lens is rotated - narrow into a smaller and smaller hole. © Thorsten Overgaard.
The aperture blades inside the consist of a number of blades that - as the aperture ring on the lens is rotated - narrow into a smaller and smaller hole.
© Thorsten Overgaard.




  The camera in Aperture Priority Mode


Aperture Priority Mode = When the shutter speed dial on top of a Leica M camera is set to A, it is short for “Aperture Priority” and allows the user to set a specific aperture value (f-number) while the camera selects a shutter speed to match it that will result in proper exposure based on the lighting conditions as measured by the camera's light meter. In other words, you set the aperture as priority (f/1.4 for example), and the camera calculates a shutter speed (1/250 of a second) that matches that. If you change the aperture to f/2.0 by changing the aperture ring on the lens, the camera will re-calculate the speed to 1/125 so as to get the same amount of light to hit the sensor (f/2.0 is half the light through the lens as f/1.4 and 1/125 if twice the amount of light on the sensor as 1/250).



APO corrected basically means that the red, green and blue has been corrected to meet more precisely in the same spot. Clarity of colors and definition of details would be the result.
APO corrected basically means that the red, green and blue has been corrected to meet more precisely in the same spot. Clarity of colors and definition of details would be the result.

APO = in lens terminology stands for "apochromatically corrected". In most lenses, optical design concentrates the focus of blue light and green light into a single plane, but red light falls slightly into another plane of focus. In APO lenses, the design and expense has been put in to making red light focus on the same plane as blue and green. Under a microscope you would see that all light subject is now in focus, creating a sharper image overall. Many manufacturers offer APO designs, but in most of these only the very center of the lens is APO corrected. Leica prides itself on making most of the frame APO corrected.
APo-correction has traditionally been used for long tele lenses (and periscopes), but in recent years APO-correction has been applied to 50mm and wide angle lenses as well. One will notice that the colors are really bright and alive, almost more real than to the eye, in lenses like the Leica 90mm APO-Summicron-M ASPH f/2.0 and 50mm APO-Summicron-M ASPH f/2.0.
Apochromat; ORIGIN early 20th century, made of the two words; apo (Greek origin, away from) and chromatic (Latin origin, meaing relating to color).

  spherical (ball)
spherical (ball)
  a-spherical (non-ball)
a-spherical (non-ball)


ASPH = (Aspherical lens) stands for "aspheric design". Most lenses have a spherical design - that is, the radius of curvature is constant. These are easy to manufacture by grinding while "spinning" the glass. This design however restricts the number of optical corrections that can be made to the design to render the most realistic image possible. ASPH lenses (a-spherical, meaning non-spherical), however, involve usually 1 element that does *not* have a constant radius of curvature. These elements can be made by 1) expensive manual grinding, 2) molded plastic, or 3) Leica's patented "press" process, where the element is pressed into an aspherical ("non-spherical") shape. This design allows Leica to introduce corrections into compact lens designs that weren't possible before. Practically, the lens performs "better" (up to interpretation) due to increased correction of the image, in a package not significantly bigger than the spherical version.

There is another Aspherical lens manufacture technique: an uneven coating layer is applied to a spherical lens. The coating is thicker on the edges (or on the center, depending). Canon "Lens Work II" calls these "simulated" aspherical lenses. Simulated and Glass-Molded (GMo) asphericals show up in non-L Canon lenses, while the L lenses have actual ground aspheric elements.

A- means non, or without. From Latin, ex.
Sphere: ORIGIN Middle English : from Old French espere, from late Latin sphera, earlier sphaera, from Greek sphaira "ball".


Normal spheric lens (grinded)   ASPH (note the shape of the glass as result of pressing rather than grinding)



Auto- means “self”. The idea is that when a camera has auto-(something), it does that (something) by itself.

Banding = Noise in digital images. Horizontal lines in a horizontal picture (if the camera is in portrait mode/vertical, the lines will obviously be vertical). It's simply noise; the result of uncontrolled algorithms working overtime with an image the sensor really can't see because it's very dark. (If your image has vertical lines in it, it is more likely that the sensor needs remapping).


This image at 6400 ISO, underexposed and then brought up to correct exposure in Lightroom, displays banding: Horizontal lines in the image. Leica M-D 262 with Leica 50mm APO-Summicron-M ASPH f/2.0.
This image at 6400 ISO, underexposed and then brought up to correct exposure in Lightroom, displays banding: Horizontal lines in the image. Leica M-D 262 with Leica 50mm APO-Summicron-M ASPH f/2.0.

Base ISO = The ISO the digital sensor was born with. Even a digital sensor goes from say 50 ISO to 25,000 ISO, it only has one base ISO. Any other setting is an algorithm that figures out how the image whould look if there was 64 times more light, or half the light, etc.
When you go down from Base ISO (for example 200 to 100 ISO), you can expect a decrease in quality. When you go up, the decrease is much less. For some sensors, you loose 2-3 stops by going down 1 step in ISO, but can go 8 steps up and only loose 1 stop in dynamic range. Basically, your ISO range should be from Base ISO and as far up as you can, before you see visible decrease in quality (mostly 3200 ISO - 6400 ISO).
Base ISO for Leica M9 is 160 ISO, for Leica M240 it is 200 ISO. For Leica M10 it is around 160 ISO. For Leica M Monochrom it is 320 ISO. For Leica Q and Leica Q2 it is around 100 ISO. For Panasonic Lumix S it is 200 ISO. For most Canon cameras the base ISO is around 100, for most Nikon cameras it is around 200 ISO.



  Barrie Gledden
  Bokeh of a Leica 50mm Noctilux-M ASPH f/0.95. British composer and producer Barrie Gledden.
© 2013 Thorsten Overgaard.

Bokeh = The visual quality of the out-of-focus areas of a photographic image, especially as rendered by a particular lens: It's a matter of taste and usually photographers discuss a 'nice' or 'pleasant' bokeh (the out-of-focus area is always unsharp, which is why the quality discussed is if one likes the way it renders or not by a particular lens). The closer you get to something, the 'more' bokeh' you get (in that the focus becomes less for the background and foreground at close distances than at long distances). ORIGIN from Japanese 'bo-ke' which mean 'fuzzines' or 'blur.'.



Bokeh: The visual quality of the out-of-focus areas of a photographic image. Photo at Bar del Fico in Rome. Leica TL2 with Leica 35mm Summilux-TL ASPH f/1.4. © 2017 Thorsten Overgaard.Bokeh: The visual quality of the out-of-focus areas of a photographic image. Photo at Bar del Fico in Rome. Leica TL2 with Leica 35mm Summilux-TL ASPH f/1.4. © Thorsten Overgaard.



C = Continuous shooting. When the ring by the Shutter Release on top of the camera (or in the menu of digital cameras that doesn't have such a feature on the outide of the camera) is moved from OFF to C, the camera takes series of images as long as the shutter release is pressed down. In some cameras the speed of continious shooting can be adjusted.



Camera comes from Chambre, mostly in relation to Spanish soldiers’ rooms. Obscura means 'dark', so a dark room is basically the derivation for the word camera.
Camera comes from Chambre, mostly in relation to Spanish soldiers’ rooms. Obscura means 'dark', so a dark room is basically the derivation for the word camera.

Camera - is today’s short name for Camera Obscura (meaning “a dark room”). Camera means Chambre and was used only as a Latin or alien word, actually only for Spanish soldiers’ rooms, until popularized in connection with photography in 1727: “Camera Obscura”. In 1793 the slang term “camera” was used by Sterne Tr. Shandy: “Will make drawings of you in the camera” and by Foster (1878), “The eye is a camera”. Camera Obscura was described by Iraqi scientist Ibn-al-Haytham in his book, “Book of Optics” (1021) and by Leonardo da Vinci in 1500; popularized and made widely known in 1589 by Baptista Porta when he mentioned the principle in his book “Natural Magic”. Johannes Kepler mentions Camera Obscura in 1604.
Camera = chambre (room), Obscura = dark (or cover).






Why is it called a "camera"..?

The word Camera is today's short name for Camera Obscura (which originally means “a dark room”).

Origin of the word Obscura means "dark" or "covered", and the word Camera means Chambre and was used originally only as a Latin or alien word, actually only for Spanish soldiers' rooms, until popularized in connection with photography in 1727: “Camera Obscura”.

In 1793 the slang term “camera” was used by Sterne Tr. Shandy: “Will make drawings of you in the camera” and by Foster (1878), “The eye is a camera”.

Ibn-al-Haytham mentioned Camera Obscura in his "Book of Optics" in 1021.
Ibn-al-Haytham mentioned Camera Obscura in his "Book of Optics" in 1021.

The concept of Camera Obscura was described by Iraqi scientist Ibn-al-Haytham in his book, “Book of Optics” (1021) and by Leonardo da Vinci in 1500; popularized and made widely known in 1589 by Baptista Porta when he mentioned the principle in his book “Natural Magic”. Johannes Kepler mentions Camera Obscura in 1604.

Camera = chambre (room), Obscura = dark (or cover).






CCD sensor (as used in Leica M8, M9, Leica S) = (Charged Coupling Devices) - The first digital cameras used CCD to turn images from analog light signals into digital pixels. They're made through a special manufacturing process that allows the conversion to take place in the chip without distortion. This creates high quality sensors that produce excellent images. But, because they require special manufacturing, they are more expensive than their newer CMOS counter parts.

CLA
An acronym for "(C)lean, (L)ubricate & (A)djust", whereby the item is merely re-lubricated, fine-adjusted and calibrated rather than repaired. "I just got my equipment back from CLA at Leica"

CMOS sensor (as used in Leica CL, Leica T/TL/TL2, Leica M10, Leica M 240, Leica M Monochrom Typ 246, Leica S Typ 007, Leica SL, Leica Q, Leica Q2, Leica M10, Leica X, Leica D-Lux, etc.) = (Complimentary Metal Oxide Semiconductor) chips use transistors at each pixel to move the charge through traditional wires. This offers flexibility because each pixel is treated individually. Traditional manufacturing processes are used to make CMOS. It's the same as creating microchips. Because they're easier to produce, CMOS sensors are cheaper than CCD sensors. CMOS allow Live View and use less energy than CCD.

Collapsible - Usually refers to a collapsible lens such as the Leica 50mm Elmarit-M f/2.8 Collapsible, or Leica 90mm Macro Elmar-M f4.0 Collapsible, etc. A collapsible lens is one that can collaps into a compact lens when not in use.

The Leica 50mm Elmar-M f/2.8 Collapsible on a Leica M10-P Safari. Here extruded for use; it can collapse into the camera so as to be more compact when not in use. © Thorsten Overgaard.
The Leica 50mm Elmar-M f/2.8 Collapsible on a Leica M10-P Safari. Here extruded for use; it can collapse into the camera so as to be more compact when not in use. © Thorsten Overgaard.



Contrast - The degree of difference between tones in a picture. Latin contra- ‘against’ + stare ‘stand.’


Normal to low contrast   High contrast




D-Lux (Digital Lux) = A series of compact digital cameras by Leica Camera AG developed with Panasonic since 2003. See my article "Compact Digital Leica Cameras" and my Leica D-Lux 7 review. Lux comes from Latin and means Light.




  Lens distortion looks like this. The lines are not straight. Our eye uses distortion correction. Lens designers can design lenses so they have very little distortion, or they can make less complicated lens designs and "fix" the distortion in software.


Distortion = In photo optics/lenses: When straight lines in a scene don't remain straight because of optical aberration.

Lens designers can correct for distortion to a degree so the whole image field is perfect corrected and all lines remain straight. In modern lens design many designs rely on Software Distortion Correction (SDC).

The eye adjusts for distortion so we always see vertical and horizontal lines straight when we look at things. Even when you get new prescription glasses (if you use such), you will often experience distortion in your new glasses. After a few days they eyes have adjusted for the glasses and the distortion you saw to begin with is now gone. Software Distortion Correction (SDC) is far behind what the human eye can perform of adjustments. (Also see my definition on Perspective for more on the eye and optics)



DNG = Digital Negative, an open standard developed by Adobe. It is a single file that contains the raw image data from the sensor of the camera as well as date, time, GPS, focal length, settings, etc.
The alternative is a RAW file + XMP file where the RAW file contains the image information and the XMP contains the rest of information about where, how and when the picture was taken, as well as editing data when the photo is edited in Lightroom or Capture One.
A Camera Raw profile (that is specific for that camera) in the computer helps the software program, for example Adobe Lightroom, to translate the RAW data into the image. Camera producers provide a Camera profile with their camera, and Adobe makes their own 'refined' Adobe Raw camera profile for all new cameras.

A raw file (or DNG) is simply the full recording of digital data (1's and 0's) from the sensor. In the computer, the sensor data is translated into the exact colors, via a camera profile.
A raw file (or DNG) is simply the full recording of digital data (1's and 0's) from the sensor. In the computer, the sensor data is translated into the exact colors, via a camera profile.



Narrow Dept Of Field in use: The face is in focus, the hand in front is slightly out of focus, the background is much out of focus and blurry. Leica 50mm Noctilux f/1.0 at f/1.0 and 2.5 meters distance to subject in focus. © Thorsten Overgaard.
Narrow Dept Of Field in use: The face is in focus, the hand in front is slightly out of focus, the background is much out of focus and blurry, reduced to an atmosphere. Leica 50mm Noctilux f/1.0 at f/1.0 and 2.5 meters distance to subject in focus. © Thorsten Overgaard.


50mm f/1.4 lens at f/1.4.   50mm f/1.4 lens at f/5.6




  The lines on this 28mm lens indicates the DOF. Here the focus is on infinity, and if the lens is stopped down to f/1.6, objects from 1.8 meter to ininity will be 'acceptable sharp'.
  The lines on this 28mm lens indicates the DOF. Here the focus is on infinity, and if the lens is stopped down to f/1.6, objects from 1.8 meter to ininity will be 'acceptable sharp'.


DOF = Depth of Field (or Depth of Focus), an expression for how deep the focus is, or (more often use to express) how narrow the area of focus is. This is how much of the image, measured in depth or ditance, will be in focus or "acceptable sharp".

The appearance of the DOF is determined by:
1) aperture (the smaller the aperture hole is, the deeper is the depth of field, and opposite, the wider open a lens you se, the more narrow will the DOF be) and
2) distance to the subject (the farther away, the larger area is sharp; the closer the subject in focus is, the more narrow the DOF gets)..
The DOF scale measurement on top of the Leica lenses shows lines for each f-stop that indicates from which distance to which distance the image will be sharp. Shallow DOF is a generally used term in photography that refer to lenses with very narrow focus tolerance, like f/1.4 and f/0.95 lenses, which can be used to do selective focus; making irrelevant subjects in the foreground and background blurry so only the subjects of essence are in focus and catches the viewers eye).
in modern cameras like the Leica SL2, the camera has a DOF scale inside the viewfinder. As DOF is the same for all lens brands and designs, only depending on focal length, distance and aperture f-stop, the camera can calculate it and show a 'digital DOF scale" in the viewfinder.

Depth Of Field scale from Fujifilm, same lens with different aperture settings from f/2.0 to f/8.0.
Depth Of Field scale from Fujifilm, same lens with different aperture settings from f/2.0 to f/8.0.


Depth of Field: Focus is on the flowers and the photograph on the desk and the foreground and background is blurred as the depth of field is narrow. If one stop down the aperture of the lens from f/1.4 to f/5.6, more will be in focus. If one stop down the lens to f/16 even more (if not all) will be in forcus. Another rule: The closer you go to a subject (the less focusing range), the more narrow the Depth of Field will be. © 2017 Thorsten Overgaard.
Depth of Field: Focus is on the flowers and the photograph on the desk and the foreground and background is blurred as the depth of field is narrow. If one stop down the aperture of the lens from f/1.4 to f/5.6, more will be in focus. If one stop down the lens to f/16 even more (if not all) will be in forcus. Another rule: The closer you go to a subject (the less focusing range), the more narrow the Depth of Field will be. © Thorsten Overgaard.



Dynamic range. The grade of ‘contrast range’ (or number of tones) a film or sensor, or simply a photograph, possess between bright and dark tones. The human eye is said to have a dynamic range of 10-14 ‘stops’ (but because we scan area by area and compile a concept of the overall scene, they eye is often thought to have a much higher dynamic range), Film used to have 7-13 ‘stops’ and some modern sensors have up to 15-17 ‘stops’.

E - Diameter in Leica filters and screw diameter, as in E46 which means that the filter diameter is 49mm for this lens. In general language, one would see Ø46 used, as Ø is the general symbol for diameter.



Elmar = Refers to the maximum lens aperture - here f3.5 . Historically derived from the original 1925 50mm f3.5 Elmax lens, which was an acronym of (E)rnst (L)ieca and Professor (Max) Berek, designer of the original lenses. Later that year the 50mm f3.5 Elmar superceded the Elmax, which was discontinued due to its complexity and high cost of manufacture.



Elmarit = Refers to the maximum lens aperture - here f2.8 . The name is obviously derived from the earlier (and slower) "Elmar" designation. Not every f/2.8 lens is called an "Elmarit" though, the most obvious current exception being the 50mm f2.8 Elmar-M collapsible lens which for nostalgia and marketing reasons has kept the original 1930's Elmar name (the 50mm f3.5 collapsible Elmar, manufactured 1930-59, was one of Leica's most famous and popular lenses). Vario-Elmarit (and Vario-Summicron, etc) is Leica Camera AG's name for zoom lenses.



Elmax
Elmax lens named after = Ernst Leitz + Max Berak. Ernst Leitz was the founder of Ernst Leitz Optical Industry which later became Leica. Professor Dr. Max Berak was employed at Leica in 1912 and was the architech of the first Leica lens which Ernst Leitz asked him to design for the "Barnack's camera" (the 1913-prototype named after Oscar Barnack who invented it). The lens was a f/3.5 50mm and was known as the Leitz Anstigmat and later the Elmax.



Elmax (Ernst Leitz Max Berek) by Marco Cavina 2010
The Leitz Elmax 50mm f/3,5 (1925-1961) on the Leica A camera (1925) camera. Photo by Marco Cavina.

EVF = Electronic ViewFinder. A viewfinder where you look at a small screen through optics/prisms. The advantage is that you see what the sensor sees.


The EVF (Electronic Viewfinder) on the Leica SL 601.
The EVF (Electronic Viewfinder) on the Leica SL 601.



EXIF =Exchangeable Image File, a file generated in camera and enclosed in the image file that contains recording information on the image such as shutter speed, exposure compensation, what metering system was used, aperture setting, ISO setting, date and time the image was taken, whitebalance, which lens was used, camera model and serial number. Some images may even store GPS information so you can see where the image were taken. The data from the EXIF file continues to follow any later editions of the image and can be read in photo editing software such as Capture One and Lightroom, as well as Photoshop (go to the menu File > File Info). There is also software available that can read EXIF data from any file, like Exifdata.com.


The EXIF data is all the information about shutter speed, metering method, ISO, etc. - and then some more that you don't see on the screen (such as camera model, serial number, lens used, etc).


Exposure Bracketing = The possibility to set the camera to automatically record a series of images where the exposure is above and below what the camera measures. The idea is that at least one of the images will be correctly exposed.

f/ (f-stop, also known as aperture).

f- (focal length). Often given in mm, for example 90mm. In the past they were often given in cm or inch, for example 9.5 cm or 3.2 inch.


f-stop = the ratio of the focal length (for example 50mm) of a camera lens to the diameter of the aperture being used for a particular shot. (E.g., f/8, indicating that the focal length is eight times the diameter of the aperture hole: 50mm/8 = 6,25 mm); or the other way around, the hole is the focal length divided with 8).
ORIGIN early 20th cent.: from f (denoting the focal length) and number.
One f-stop is a doubling or halving of the light going through the lens to the film, by adjusting the aperture riing. Adjusting the f-setting from f 1.4 to f.2.0 is halving the light that goes through the lens. Most Leica lenses has half f-stops to enable the photographer to adjust the light more precicely.





Filters = Glass filters you put in front of the lens. A much used filter is the claer UV filter that is supposed to protects the front of the lens. Other filters are color filters that add effects to black and white photography by changing the color balance. Other filters are ND (Neutral Density) filters that reduce the amount of light coming through (used for for example video recordings as video is usuallu filmed at 1/50th second shutter speed and thus most lenses are too bright wide open. Or they are used for long exposure photography in order to record for example stars movements over the sky. Other filters are filters that create star effects, or blur the view, and almost any effect you can think of.

A traditional Yellow filter slightly darkens skies, helps to cut through haze, and improves overall contrast. Yellows and reds within the scene are also lightened.
A traditional Yellow filter in 49mm diameter to screw onto the front of the lens. The yellow filter is used for black and white photography where it slightly darkens skies, helps to cut through haze, and improves overall contrast. Yellows and reds within the scene are also lightened.



Flare = Burst of light. Internal reflections between (and within) lens elements inside a lens. Mostly, flare has a characteristic "space travel" look to it, making it cool. Particularly in older lenses with less or no coating of the glass surfaces to suppress this, it can be a really cool effect. In newer lens designs, the coatings and overall design try to suppress flare and any reflections to a degree, so that there is seldom any flare to be picked up (moving the lens to pick up a strong sunbeam), but instead a "milking out" (or "ghosting") of a circular area of the frame; meaning simply overexposed without any flare-looking flares.



Sunlight creating (fairly supressed) flare in the bottom right quadrant of the image of a modern lens.

  The camera moved slightly to avoid the flare.

Older lenses with less coating, or without coating, are known to create flare that can look like this (Leica 50mm Summicron-M f/2.0 II Rigid model from the 1960's). © Thorsten Overgaard.
Older lenses with less coating, or without coating, are known to create flare that can look like this (Leica 50mm Summicron-M f/2.0 II Rigid model from the 1960's). © Thorsten Overgaard.

Lens flare in the movie, The Graduate (1967).
Lens flare in the movie, The Graduate (1967).

Lens flare in Mission Impossible Fallout (2019)
Lens flare in Mission Impossible Fallout (2019)

Lens Flare in Star Trek (2013). JJ Abrams famously said, "I know there's too much lens flare ... I just love it so much. But I think admitting you're an addict is the first step towards recovery (ha ha)"
Lens Flare in Star Trek (2013). JJ Abrams famously said, "I know there's too much lens flare ... I just love it so much. But I think admitting you're an addict is the first step towards recovery (ha ha)"



FLE = See "Floating Elements"

Flickering in the EVF is very normal and will apear often without the vertical lines you see in the EVF will be in the picture.


  Floating elements (a group of lenses or can also be s aingle lens element). .

Floating Elements (FLE) = Near focus correction in a lens by having a single lens or a group of lenses floating independently of the other lenses. Most lenses are born with poor performance at their closest focusing distance. Center sharpness may be good, but aberrations and corner softness increase when you’re shooting closeups. Floating elements are lens elements outside of the primary focus group that change position when the lens is focused on a close object, correcting aberrations and improving close up performance.
Floating Elements originally was coined by Canon in the 1960's and quickly became the general term for this feature. Other brands came up with new names for the same thing, Minolta called it Floating Focusing, Nikon used the term Close-Range Correction (CRC), Leica call it FLE/Floating Elements.
Floating elements are for close-focus improvement of image quality and not for reducing "focus shift". Floating elements by themselves cannot reduce focus shift, but by reducing the impact of focus distance on performance, they give the designers more freedom in other areas - which could include minimising focus shift.
(As a side-note, when a lens "rattler when moved, it is not the floating elements "floating around" but can be the IS (Image Stabilization) elements for elense that has that, AF elements for auto focus lenses, or the aperture cage that rattles (as in the case of the Leica 35mm Summilux-M f/1.4 FLE - if you stop down the Summilux to f/16, the sound is usually not there).


  A 28 mm lens has a 74° viewing angle


Focal length = Originally focal length referred to the distance from the sensor (or film in older days) to the center of focus inside the lens (28mm, 50mm, 400mm, etc). Today one call it effective focal length (EFL) as a 400mm lens is not nessesarily 400mm long due to optical constructions that can make it shorter. The 35-420mm zoom on the Leica V-Lux 1 is for example only ca. 135 mm long. Nobody uses that measurement, except those who construct lenses! For users of lenses, focal length refers to how wide the lens sees. The viewing angle, which is often given in for example 90° viewing angle for a 21mm lens, 74° viewing angle for a 28mm lens, 6° viewing angle for a 400mm lens, etc.
Each human eye individually has anywhere from a 120° to 200° angle of view, but focus only in the center.



Focus, in - Sharp and clear in appearance. Focus - “The burning point (of a lens or mirror)”. In Latin the word focus meant fireplace or hearth. The word was probably first employed outside of its Latin literal use as “the burning point of a lens or mirror” in optics, and then came to mean any central point. The German astronomer Johannes Kepler first recorded the word in this sense in 1604.

Focus shift = That the focus of a lens shifts as the aperture changes. For example, if one focus a 50mm lens at f/2.0 and then stop the aperture down to f/8, the focus may change, especially noticeable in close focusing. Modern lenses with floating elements (FLE) where the floating elements adjust for image quality in close-focusing may also help avoid focus shift.

Four Thirds - Also known as "4/3" - The Four Thirds System is a standard created by Olympus and Kodak for digital SLR camera design and development.
The system provides a standard which, with digital cameras and lenses available from multiple manufacturers, allows for the interchange of lenses and bodies from different manufacturers. Companies developing 4:3 cameras and/or lenses are Fuji, Kodak, Leica, Olympus, Panasonic, Sanyo, Sigma. See www.4-3system.com
A further development in this was Micro Four Thirds Systems.



Frame lines = the lines inside a viwfinder that indicates the edger of the frame. In a Leica M, the viewfinder always is as wide view as 24-28mm. A mechanical contach on the lens (triggers the camreas frame selector) so the viewfinder shows the frame line of that lens. In the Leica M, the frame lines comes in sets, so there are alwaus twop sets of frame lines shown at any time (see illustration below).
(This is different than in most cameras where you only see what the lens captures: SLR cameras was the evolution in 1940's where the image from the lens was displayed directly onto a matte screen inside the camera via a mirror. Later mirrorless cameras, the viewfinder shows the exact picture that the sensor sees through the lens).

Frame lines of the Leica M, here showing the set of 35mm and 90mm framelines.
Frame lines of the Leica M, here showing the set of 35mm and 90mm framelines.




  Full Frame is "king of photography"


Full Frame (FF) = The size of the sensor is 24 x 36mm which is the format Oskar Barnack and Leica Camera AG invented with the first Leica that was introduced in 1925. Many other formats invented since, such as APS, APS-C and all usually refer to Full Frame ratio, by which it means what size they have compared to Full Frame. The "full frame" technically deifinition thouhg is a sensor that camtures the full frame in one go (as the early sensors as in Leica S1 scanned the image/senor over a period of time).
The 24 x 36mm Full Frame format is so "king of photography" that it has continued to be the ideal for all cameras. Besides this, there exists Large Format cameras such as 4x5" (100 x 125 mm) and Medium Format 6x6 (60 x 60mm amongst other sizes in that area).



Ghosting = Secondary light or image from internal reflections between (and within) lens elements inside a lens. The reflected light may not always be in focus, so overall it looks like a "milked out" image. A subject in focus has brightened patches in front of it that come from reflections inside the lens. the most elementary look of ghosting is when you look in a rear-view mirror in a car at night and you see doubles of the headlights behind you (a strong one and a weaker one), because the headlights are reflected in a layer of clear glass on top of the mirror glass.


Degrees of ghosting from strong sunlight entering from outside the frame. To the right the outside light has been shielded with a shade.



ISO = Light sensitivity of the camera sensor is given in ISO (International Organization for Standardization). It's a standard that was used in film and is now used in all digital cameras also. The base ISO for the Leica TL2 sensor is around 100-150 which means that this is what the sensor "sees". All other levels are computer algorithms calculating the effect as if the sensor could "see" more (hence noise at higher ISO levels).
ISO goes in steps of doubling: When the ISO is raised from 100 ISO to 200 ISO, the camera only need half the amount of light to make the same picture. For each step in ISO to 400, 800, 1600, 3200, etc. the light sensitivity is doubled for the sensor (and the camera sensor only need half the light of the previous ISO to record the same image).


6400 ISO indoor photo. With modern cameras the ISO can go to 3200, 6400, 12,800 and even higher without loss of dynamic range and without digital noise. Leica M10 with Leica 50mm Noctilux-M ASPH f/0.95. © 2017 Thorsten Overgaard.

JPEG = A standard for picture format made in the 1990's by Joint Photographic Experts Group). Mostly referred to as JPG as in L1003455.JPG which would be the name for a JPG file from the camera.



Leica L-mount bayonet.
Leica L-mount bayonet.

L-mount = Lens bayonet mount introduced by Leica for the Leica T in 2014 and used for Leica TL, Leica CL and Leica SL. Since 2019 the L-mount has also been shared with Panasonic, Sigma and others who produce cameras and lenses that are compatible with Leica L cameras and lenses lenses, and vice versa.
The L-mount has a diameter of 51.6 millimeter which is big enough for any design we could wish to design, and at the same time compact enough for the L-mount to be used on compact cameras such as Leica TL and Leica CL with APS-C sensor sizes. Leica chief lens designer Peter Karbe spent years calculating this ideal size, large enouhg for any design, yet as compact as possible. Read my article "Small Camera, Large Print" (2019) with interview with lens designer Peter Karbe for more.
After Leica introduced this new bayonet mount in 2014, Nikon (Z-mount 55mm), Fuji (G-mount 65mm) and Canon (RF-mount 54mm) followed with similar new bayonet mounts, but with bigger diameter, making them less able to produce compact lenses.



Lantern slideshow in 1897.
A screen on a camera is often referred to as "LCD Screen" for no particular reason (illustration is the back of the Leica Q2 special limited "James Bond/Daniel Craig & Greg Williams" version (2021).

LCD = Screen. LCD itself means liquid crystal display, which is slightly irrelevant (what it is made of) as the expression is mostly used to simply mean "screen".

Leica = A compound word derived from " (Lei)tz" and "(ca)mera". Apparently they were originally going to use "LECA", but another camera company already used a similar name in France, so they inserted the 'i' to prevent any confusion.



The word lens derives from lentil, because of the similar shape.
The word lens derives from lentil, because of the similar shape.

Lens - A piece of glass or similarly transparent material (like water or plastic) that has a shape so that it can direct light rays. The word “Lens” is used both for single piece of glass as well as a camera lens with several lenses that works together. From ‘lentil’ because similar in shape.

A camera lens consists of several shaped lens elements of glass. The lenses can also be made of simple cheap plastic as in "kit lenses" (sold with a camera as a kit to make a workable cheap package), but it is mostly very exotic glass (that can be heavy or light in weight, very hard or very soft in surface (esay to scratch or very resistant) with each optical glass recipe made to develop very specific qualities in how the glass and final lens treats light. As a general rule, high quality glass is soft, which is why some lenses has as their front and back element, a non-optical lens element that is there to protect the actual optical glass from scratches. As a side noite, Leica made their own glass laboraty, The Leitz Glass Laboratory, from 1949-1989, which deveopled 35 new glass types and took out more than 2,000 patents of glass recipes from more than 50,000 experimental melts of glass. These designs, or recipes, are still used today by the lens designers to obtain very specific optical results. Other lens manufacturers in the world of course have had their glass laboratories, and today one will find an interchange of glass patents amongst production facilities that service Leica, Nikon,, Fuji and so on with optical lens elements.
A camera lens consists of several shaped lens elements of glass. The lenses can also be made of simple cheap plastic as in "kit lenses" (sold with a camera as a kit to make a workable cheap package), but it is mostly very exotic glass (that can be heavy or light in weight, very hard or very soft in surface (esay to scratch or very resistant) with each optical glass recipe made to develop very specific qualities in how the glass and final lens treats light. As a general rule, high quality glass is soft, which is why some lenses has as their front and back element, a non-optical lens element that is there to protect the actual optical glass from scratches. As a side noite, Leica made their own glass laboraty, The Leitz Glass Laboratory, from 1949-1989, which deveopled 35 new glass types and took out more than 2,000 patents of glass recipes from more than 50,000 experimental melts of glass. These designs, or recipes, are still used today by the lens designers to obtain very specific optical results. Other lens manufacturers in the world of course have had their glass laboratories, and today one will find an interchange of glass patents amongst production facilities that service Leica, Nikon,, Fuji and so on with optical lens elements.



Lens hood = (also called a Lens shade or Ventilated Shade). A tube or ring attached to the front of a camera lens to prevent unwanted light from reaching the lens and sensor. In the past where lenses were not coated to prevent internal reflections inside the lens, the lens hood was often essential. These days where lenses are coated, the shade serves just as much as decoration and protection (bumper) as well.
ORIGIN Old English hod; related to Dutch hoed, German Hut 'hat,' also to hat.

Lens hood or Lens shade or ventilated shade. In the picture is a ventilated shade with clip-on mount to a 50mm f/2.0 lens. Ventilated means it has openings that allow for view from the viewfinder.
Lens hood or Lens shade or ventilated shade. In the picture is a ventilated shade with clip-on mount to a 50mm f/2.0 lens. Ventilated means it has openings that allow for view from the viewfinder.



Lens names of Leica distinguish which widest aperture the lens has:

Noctilux f/0.95 - f/1.25
Nocticron f/ 1.2 (Leica-designed Panasonic lens)
Summilux f/ 1.4 - f/1.7
Summicron f/2.0
Summarit f/2.4 - 2.5
Hektor f/1.9 - f/6.3 (used 1930-1960 for screw mount lenses only)
Elmarit f/2.8
Elmar f/2.8 - f/4.5
Elmax f/3.5 (only used 1921-1925 for the 50mm Elmax f/3.5)
Telyt f/2.8 - f/6.8 (used for tele lenses)



Light = Tiny particles called photons that behaves like both waves and particles. Light makes objects visible by reflecting off of them, and in photography that reflecting off of subjects is what creates textures, shapes, colors and luminance. Light in its natural form (emanating from the sun) also gives life to plants and living things, and makes (most) people happier. So far, nobody has been able to determine exactly what light is. The word photography means “writing with light” (photo = light, -graphy = writing). Read more about light in my book Finding the Magic of Light.



Live View = This is the ability to see the image the sensor see, live, via the screen on the back of the camera, or via an electronic viewfinder (EVF).

LMT - Leica Thread-Mount: Also known as M39, is the screw mounted lenses for Leica cameras. It’s a simple as that; you screw on the lens, and back in 1932, the possibility to change the lens was the big news hwen introduced by Leica on the Leica III. The M39 system was updated with the M Bayonet from 1954 for the Leica M3. The M bayonet is a quick way to change lenses and is the current mount for Leica M digital rangefinders.

M (as in "M3", "M6", "M7" etc.)
A) The M originally stands for "Messsucher", which is German "Meßsucher" for "Rangefinder". The "3" in M3 was chosen because of the three bright line finders for the 50, 90 and 135 mm lenses. Later the numbers of the M cameras were more or less chosen to follow each other.
M-body evolution in chronologic order:
M3 - MP - M2 - M1 - MD - MDA - M4 - M5 - CL - MD-2 - M4-2 - M4-P - M6 - M6 TTL - M7 - MP - M8 - M8.2 - M9 - M9-P - MM (black and white sensor) - ME (Type 220) - Leica M (Type 240) - Leica M-P 240 - Leica M 246 Monochrom - Leica M-A (type 127, film camera) - Leica M 262 - Leica M-D 262 (without a screen) - Leica M10 - Leica M10-P, Leica M10 Monochrom, Leica M10-R.
B) M also refer to M-mount as the M bayonet that couple the Leica M lenses to the Leica M camera. Before the M bayonet the coupling between the camera and lens was screwmount.
C) M nowadays refer to the Leica M line of cameras rather than the "Messsucher".



The Leica M bayonet on the Leica M10.
The Leica M bayonet on the Leica M10.

M-mount: The Leica M-mount is a bayonet that was introduced with the Leica M3 camera in 1954 and has been used on all subsequent Leica M cameras, as well as on the Epson R-D1, Konica Hexar RF, Minolta CLE, Ricoh GXR, Rollei 35RF, Voigtländer Bessa, and Zeiss Ikon cameras (2019).
Compared to the previous screw mount (M39), the M mount requires a quick turn of the lens, and ithe lens is mounted. The patent for the M-bayonet ("Bajonettvorrichtung für die lösbare Verbindung zweier Kamerateile") was registered by Ernst Leitz GmbH 10 February 1950 (patent number DE853384). Hugo Wehrenfennig was credited with the invention.

M9
Leica M9 is a model name for the Leica M9 that was introduced on September 9, 2009 (as the first full-frame digital Leica M). It was the latest model designation using the M and a number. From their next model, Leica Camera AG introduced a new model system so each camera would simply be a Leica M but then with a model designation like Typ 240, Typ 246, Typ M-D 262 and so on. The idea was inspired from Apple who name their computers for example MacBook Pro and then it has a sub- model number designation which model it is (and which would define speed of processor, etc).


Leica M9 digital rangefinder (2009). © Thorsten Overgaard.
Leica M9 digital rangefinder (2009). © Thorsten Overgaard.



MACRO = Macro lens. The Leica 60mm APO-Elmarit-Macro-R ASPH f/2.8 is a 60mm lens for portraits, landscapes, etc. as well as a near focus macro lens. The Leica Q lens can be turned to Macro which enables you to go close so as to enlarge smaller subjects. The Leica M cameras becomes Macro when you add a Macro ring "Oufro" or "Leica Macro M Adapter" that increases the lens' distance to the sensor. The word macro comes from Greek makros ‘long, large.’



The word macro comes from Greek makros ‘long, large.’ The Leica 60mm APO-Elmarit-Macro ASPH f/2.9 is both a 60mm lens for portraits, landscapes, etc as well as a near focus macro. © Thorsten Overgaard.
The word macro comes from Greek makros ‘long, large.’ The Leica 60mm APO-Elmarit-Macro ASPH f/2.8 is both a 60mm lens for portraits, landscapes, etc. as well as a near focus macro. © Thorsten Overgaard.



Mandler, Dr. Walter (1922 - 2005)
Legendary Leica lens designer and CEO of Ernst Leitz Canada (ELCAN) 1952-1985. Read more in Leica History.

Dr. Walter Mandler (center) at the Ernst Leitz Camera factory.
Dr. Walter Mandler (center) at the Ernst Leitz Camera factory.



Megapixel (or MP) - Millions of pixels. See pixel further down. How many units of RGB is recorded by a given sensor by taking height x widt. A Leica M10 delivers a 5952 x 3968 pixel file = 23,617,536 piexls. On a screen the resolution you choose determines the size of the image. Say you have a 5000 pixel wide file and your screen is set for 8000 pixels wide. Then the image will fill only the 5000 pixels fo the 8000 and the rest will be empty, If you then change the screen resolution to 5000 wide, the image would be able to fill out the whole screen.

Meßsucher = (rangefinder or distance finder) = Mess = range, sucher = finder. It is always correctly written with the "ß". There are technically not three "s", rather the "ß" and one "s" because it is a word constructed by the combining of two precise words.

MF (Manual Focus) for lenses that are focused by hands, as opposed to Auto Focus.



Focal length is determined by the distance from focus inside the lens to sensor surface to, and is given in milliemeters (mm). © Thorsten Overgaard.
Focal length is determined by the distance from focus inside the lens to sensor surface to, and is given in milliemeters (mm). © Thorsten Overgaard.

mm = millimeter(s), as in a 50mm lens. (Earlier in lens history lenses focal length was given in cm = centimeters; as in a 5 cm lens). For anyone used to centimeters and millimeters, it’s no wonder. But if you grew up with inches, feet and yards, you may have had a hard time grasping what a 50mm lens was. But as lenses were designed first in Europe, the metric system with centimeters and millimeters was used to describe lenses.
(Leica and others made lenses for a while with either meter scale or feet scale; but then eventually started including meter and feet on all the lenses (two scales, usually distinguished with different colors). However, the lens' focal length remained always 50mm, 75mm and so on).
The reason a 50mm lens is a 50mm lens is that there is 50mm from the focus plane (the film or sensor surface) to the center of focus inside the lens. When photography was a young subject, it was engineers who made it all, and the users were expected to understand. The engineers were so into the making of the lenses, that it apparently never dawned upon them that today’s users would think of a 21mm lens as a wide angle lens rather than a lens where there is 21mm from the sensor to the center of focus inside the optics.

MP
a) Stands for Mechanical Perfection, as in the Leica M-P.
b) Megapixels (millions of pixels).
c) Megaphotosites (millions of photosites).

ND
Neutral Density filters are grey filters function as 'sunglasses' for lenses. They simply block the light so that a lens can work at for example f/0.95 or f/2.0 in sunshine.
If a camera is set to 200 ISO and the maximum shutter speed is 1/4.000, this will usually result that the lens has to be at f/2.8 or smaller aperture in sunshine. Else the image will over-exposed. So in order til stay within the maximum shutter speed of 1/4.000 and still use a lightstrong lens wide open, one mount a ND-filter that reduce the light with 3 stops (8X) or 6 stops (64x).
For video ND-filters are used quite a lot (as the shutter speed for video is 1/60), and ND-filters are also used to reduce the light for really long multi-exposures at night (stop-motion video and stills).
ND-filters also exist as variable ND-filters so one can adjust the amount of light going through from for example 1 stop (2X) to 6 stops (64X).
ND-filters also exist as graduated ND-filters where the top of the filter is dark and then gradually tone over in no filter (so as to reduce the skylight in a landscape for example).
The ND filters are called Neutral because it is a neutral filter. It doesn't change colors, only the amount of light.

ND-Filrers. Neutral Density. Photo © Thorsten Overgaard
ND-filters / gray-filters.


Noctilux = Also known as "King of the Night" because "Nocti" means Night and "Lux" means Light. The f/1.0 lenes from Leica are named "Noctilux". The first Leica Noctilux lens was the 50mm Noctilux f/1.2 which shortly after it's introduction was improved to the 50mm Noctilux f/1.0. In the current model the f-stop has been improved further to f/0.95.
"Noctilux" refers to the maximum lens aperture - here f1.0 . "Nocti" for nocturnal (occurring or happening at night; ORIGIN late 15th cent.: from late Latin nocturnalis, from Latin nocturnus ‘of the night,’ from nox, noct- ‘night.), "lux" for light. The Leica Noctilux 50mm f1.0 is famous for enabling the photographer to take photos even there is only candleligts to lit the scene. See the article "Leica Noctilux - King of the Night"

The Noctilux "King of the Night" lens. From left the 0.95 in silver (same on the camera, in black, the f/1.0 in the back and the rare and expensive first model, the f/1.2 in the front.
The Noctilux "King of the Night" lens. From left the f/0.95 in silver (same on the camera, in black), the f/1.0 in the back and the rare and expensive first model, the f/1.2 in the front.



No.
Number, on this site Leica catalog numbers or order numbers. Some the numbers changed depending on the number of cams in the lens: The Elmarit-R f2.8/135mm started life as No. 11 111, however when fitted with 2 cams for the SL became No. 11 211, yet another No. for the 3 cams lens and a fourth number for 3 cam only at the end of its life. Number changes also applied to M lenses depending on whether they were screw-thread, bayonet or for M3 with “spectacles”. Thus the No. in the Thorsten Overgaard Leica Lens Compendium list is a guideline but not a comlete list of existing catalog numbers.



Optic = Eye or vision. From French optique or medieval Latin opticus, from Greek optikos, from optos ‘seen.’



Leitz Oufro part no 16469

Oufro (model 16469Y)
An original Leitz Extension Ring (produced 1959-1983 as part no. 16469). Used with Oubio for all the longer (125mm+) Visoflex lenses and without OUBIO for 35/50mm. OUFRO can be stacked for greater magnification and will work on the Leica M Type 240 as macro for all lenses (including the Noctilux, 90mm APO-Summicron and even 21mm lenses).

The OUFTO on Leica M Type 240The OUFTO on Leica M Type 240 with Leica 90mm APO-Summicron-M ASPH f/2.0.



Perspective = The way objects appear to the eye; their relative position and distance. Also, selective focus (foreground and background out of focus) can change the perception of perspective (also see Three-dimensional). A wide angle "widens" the perspective and makes objects further away appear smaller than they are to the eye; and objects closer, relatively larger than they are to the eye. A tele lens will "flatten" the perspective and often objects further away will appear relatively larger than close objects than they are in real life. A 50mm lens is the one closest to the perspective and enlargement ratio of the human eye.

The word Perspective comes from the latin word for optics (perspicereper- ‘through’ + specere ‘to look’), and so-called Renaissance painting is simply painting done within the framework of optics and the linear perspective it presents.



Perspective is relative position and distance. The objects nearby are larger than objects far away. This is how the eye and the mind calculate distance. The eye and the camera automatically captures perspective. In darwing and painting one would see "stupid" two-dimensional drawings 500 years B.C where elements were thrown into the mix without considering that a an object far away must be smaller than if close to the viewer. Pier 7 in San Francisco by Thorsten Overgaard. Leica M11 with Leica 50mm Noctilux-M ASPH f/0.95.
Perspective is relative position and distance. The objects nearby are larger than objects far away. This is how the eye and the mind calculate distance. The eye and the camera automatically captures perspective. In darwing and painting one would see "stupid" two-dimensional drawings 500 years B.C where elements were thrown into the mix without considering that a an object far away must be smaller than if close to the viewer. The word "perspective" comes from "to look through (optics)". Pier 7 in San Francisco by Thorsten Overgaard. Leica M11 with Leica 50mm Noctilux-M ASPH f/0.95.


  Vanishing points are the points where lines meet. This is how you make perspective in paintings and drawings (and some times make movie sets or theatre stages appear more three-dimensional than they are)


Painters works with vanishing points, which is where the lines meet, so as to create an illusion of perspective and three-dimensional effect on a two-dimensional painting or drawing.

The human eye corrects for perspective to an extreme degree. We always see vertical lines vertical and horisontal lines horisontal: The eye has a angle of view equivalent to an 8mm wide angle lens, a size ratio equivalent to a 50mm lens and we focus on relatively small area of the viewing field - one at the time. Three things happens that are worth paying attention to:

1) We compile areas of our view that we focus on, to one conceptual image that "we see". Ansel Adams, the great American landscape photographer pointed out that a large camera used for landscape photography capture every detail in focus and sharp so you can view it in detail after; but the eye does not see everything in focus when you try to compose the landscape photography, the eye scans only one part at a time and stitch the idea together. This makes composing or prevision of a landscape photography challenging.

2) We compile areas of our view that we individually adjust the exposure of. A camera adjust the exposure of the whole image frame to one exposure. That's why what looks like a nice picture to the eye of houses in sunshine with a blue sky above, becomes a photograph of darker buildings with a bright white sky: The camera simply can't take one picture that compare to what we "compiled" with our eyes, adjusting for each type of light.

3) Objects (on a table, for example) in the bottom of our viewing field will appear 100% perspective corrected - to a degree that it is impossible to correct in optics, with or without software correction. A wide angle lens, even with little distortion, will exaggerate the proportions of the closet part so it - to the eye - looks wrong.



Perspective distortion: Comparing these two photographs you can see how the cup stretches in the 28mm wide angle photograph compared to the 50mm photograph. Both actually has a little stretch because both the cup is in the edge of the frame in both photographs. © 2017 Thorsten Overgaard.
Perspective distortion: Comparing these two photographs you can see how the cup stretches in the 28mm wide angle photograph compared to the 50mm photograph. Both actually has a little stretch because both the cup is in the edge of the frame in both photographs. © Thorsten Overgaard.



Perspective correction - In software like Adobe Lightroom and Capture One Pro there is often a feature to correct perspective (and distortion) like seen below. You can change perspective this way, or at least make believe: If you correct a tall building on teh vertical lines, you will notice that the height of the windows doesn't match the perspective. If the building is with straight lines, the windows should all be of the same size. But a tall building seen from below and corrected with software will have taller windows (closer to camera) in the bottom than in the top (further away from the camera originally).

Perspective correction in Adobe Lightroom. © 2017 Thorsten Overgaard.  Perspective correction - In software like Adobe Lightroom there is often a feature to correct perspective (and distortion) like seen below. You can change perspective this way, or at least make believe: If you correct a tall building on teh vertical lines, you will notice that the height of the windows doesn't match the perspective. If the building is with straight lines, the windows should all be of the same size. But a tall building seen from below and corrected with software will have taller windows (closer to camera) in the bottom than in the top (further away from the camera originally).
Perspective correction in Adobe Lightroom. © 2017 Thorsten Overgaard.



  A graphic illustration of the typical Bayer Color Filter Array on an RGB sensor. It's called a Bayer filter because Bryce Bayer of Eastman Kodak invented the technology of filtering incoming light into RGB and distribute it into the the photosites that each read just one color (R/G/G/B).
  A graphic illustration of the typical Bayer Color Filter Array on an RGB sensor. It's called a Bayer filter because Bryce Bayer of Eastman Kodak invented the technology of filtering incoming light into RGB and distribute it into the the photosites that each read just one color (R/G/G/B).


Photosite - The unit in a digital camera sensor that records intensity of either red, green or blue. Unlike the output of a sensor, measured in pixels (and where each pixel contains RGB), the photosite records only one color each, and it's intensity (how bright it is). A photosite can not distinguish colors, which is why there is a Color Filter Array (basically a prism) above them to filter the colors and send information to the photosite if 's a R, G og B color. See illustration below. In a monochrome sensor (as in the Leica M Monochrom and the Phase One Achromatic), all photosites are recording intensity of light only as there is no concern which color it is, and there is no color filter.
The ratio of photosites to pixels is not a given. Each block of 4 contiguous photosites contains one photosite sensitive to low wavelengths (blue), one photosite sensitive to high wavelengths (red), and two identical photosites sensitive to medium wavelengths (green). So four photosites would be the minimum to create one 'full-color' pixel. Apart from that, depends on the sensor specifications, which is different from brand to brand. Sometimes four photosites (two Green, one Red and one Blue) makes up one pixel, at other times it's more photosites to one pixel; and there is also pixels sampled from photosites across (sort of overlapping patterns).



Pixel - Made up word from Pix (picture) and el (element). A pixel is the smallest full-color (RGB) element in a digital imaging device. The physical size of a pixel depends on how you've set the resolution for the display screen. The color and tonal intensity of a pixel are variable, meaning that each pixel contains RGB. This is different from a camera sensor's small eyes (photosite) that are an intensity of either red, green or blue. You could say that the digital sensor's photosite (where each unit collects just one color; red, green or blue) is the input technology, whereas the pixels on a screen (where each pixel contains red, green and blue) is the output device. So while sensors are measured in megapixels (mega = million), it's their output unit of pixels, and not the input unit of photosites that is measured and stated. See illustration below.



Here's an illustration of how light goes into photosites that each record either R, G or B and then - combined - makes up one pixel containing RGB. © Thorsten Overgaard.
Here's an illustration of how light goes through a color filter that enables the underlying photosites to each record if it';s an R, G or B color - combined - makes up one pixel containing RGB. © Thorsten Overgaard.



R = Resolution, in the name Leica M10-R camera model (2020).



Rigid - Refers usually to the Leica 50mm Summicron-M f/2.0 "Rigid" of 1956.
It is called "Rigid" because, unlike the 50mm Collapsible, this one is not able to be changed.
Rigid means stiff, uable to be forced out of shape. Not able to be changed. From Latin rigere, "be stiff".
The name is a little confusion nowadays as all or most lenses are rigid today, but back in 1925-1956, many lenses were collapsible so the camera was compact when not in use. Just like compact cameras today often has a lens that extrudes when the camera is turned on, and collaps into the camera body when the camera is turned off.

RF
(R)ange (F)inder - the mechano-optical mechanism which allows M Leicas to focus.
Alternative meaning - RF is also shorthand for Hexar RF , Konica's motorised "M-lens-compatible" rangefinder camera released in 2000.

S = Single image. When the ring by the shutter release on top of the camera (or in the menu of a digital camera in case it does not have this ring on the ourside) is moved from OFF to S, the camera takes only one photo at the time (Single). The other possibility is Continuous where the camera takes pictures continiously as long as the shutter release button is helt down. (see above).



Saturation: How colorful, intense or pure the color is. Less saturation would be less colorful, more saturation would be more colorful. In today’s photography, de-saturating a photo on the computer will gradually make it less and less colorful; and full de-saturation would make it into a black and white photo.

A photo from Verona, Italy de-saturated, normal saturated and over-saturated. © Thorsten Overgaard.
A photo from Verona, Italy de-saturated, normal saturated and over-saturated. © Thorsten Overgaard.



Sensor = A device that detects a physical property (like light) and records it. A camera sensor is a plane plate with thousands of small “eyes” with (photosites) a lens in front of each (CFA, Color Filter Array), which each individually records the amount of red, green and blue light rays that comes through the lens. Together, Red, Green and Blue form all colors of the spectrum, which becomes a pixel. Sensor comes from Latin sens- ‘perceived’.

Sharpness - See “Focus”

Shutter speed dial - The dial on top of the Leica M where you can set the shutter speed manually. It can also be set to A which stands for Aperture Priority (where the camera suggests a shutter speed; or when you move the dial away from A, the camera will show arrows in the viewfinder, suggesting which direction to change the Aperture to, to get the correct exposure).

SDC (Software Distortion Correction): In Lightroom the correction profile for the Fujinon 23mm is applied automatically and cannot be turned off. If you go into Develop mode in Lightroom and look under Lens Correction > Profile, you will see a message in the bottom with an exclamation mark. When you click on that, you get the message above.
Shutter speed dial set to 1/1000 of a second.



  The 6-bit code on the flange of the lens is read by the sensor on the Leica M bayonet of all digiral Leica M cameras since 2006. © Thorsten Overgaard.
  The 6-bit code on the flange of the lens is read by the sensor on the Leica M bayonet of all digital Leica M cameras since 2006. © Thorsten Overgaard.


Six-bit code (6-bit code) - An engraving on the flange of M-lenses that makes it possible for digital M-cameras to recognize the lens that has been mounted. The camera can include information on the attached lens and its focal length in EXIF data and make digital corrections for lens-specific flaws, such as color-cast or vignetting. Six-bit coding was introduced for all M-lenses sold since 2006, but many older lenses can be retrofitted with the code at Leica Camera AG in Wetzlar.



SL = Abbreviation for Single-Lens as in the Leica SL that is a camera without reflex (mirror).



SLR = Abbreviation for Single-Lens Reflex; the lens that forms the image on the film/sensor also provides the image in the viewfinder via a mirror. Newer camera models has aen EVF (Electronic Viewfinder) that displays in the viewfinder what the sensor sees in real-time.



  Leitz Wetzlar Mikro-Summar 42mm
  Leitz Wetzlar Mikro-Summar 42mm f/4.5 lens anno 1910 might be the first lens carrying the name Summar.

Summar - (or a story of name development)
The 1933 lens 50mm f2.0 Summar: It started out as Summar(f2.0), then the Summitar (f2.0 in 1939), then the Summarex(f1.5 in 1948), then the Summaron(35mm f.2.8 in 1948, then later f2.0, f3.5 and f5.6 lenses), then the Summarit (f1.5 in 1949 and used again for the 40mm f2.4 on the Leica Minilux in 1995, then again for the 35mm, 50mm, 75mm and 90mm Summarit f2.5 in 2007) then the Summicron(f2.0 in 1953 for the collabsible 50mm) and finally the Summilux(50mm f1.4 in 1959).
ORIGIN of Summar is unknown.



Summarex
The great thing about being a lens designer is that you get to name the lens. Dr. Max Berek who worked for Leitz from 1912 till his death in 1949 named lenses after his two favorite dogs. One was Sumamrex named after his dog Rex, the other Hektor named after his dog Hektor.



Summarit
Refers to the maximum lens aperture - here f/1.5.



Summicron = Refers to the maximum lens aperture - here f/2.0 . There are many guesses how this name came about, a popular one being that the "summi" came from "summit" (summit means the highest point of a hill or mountain; the highest attainable level of achievement) while the "cron" came from "chroma" (ie. for colour). Not so: The name (Summi)cron was used because the lens used Crown glass for the first time, which Leitz bought from Chance Brothers in England. The first batch of lenses were named Summikron (Crown = Krone in Deutsch). The Summi(cron) is a development from the orignal Summar (the 50mm f2.0 lens anno 1933). Vario-Summicron, Vario-Elmarit is Leica Camera AG's name for zoom lenses, for example the Vario-Summicron f/2.0 as the one that is on the Leica Digilux 2.



Summilux = Refers to the maximum lens aperture - here f/1.4 , "-lux" added for "light" (ie. the enhanced light gathering abilities). In Leica terminology a Summilux is always a f/1.4 lens and a Summicron is a f/2.0 lens.



Telyt
Lens nomenclature - short-hand for " telephoto " (tele- is a combining form, meaning to or at a distance) and used in names of instruments for operating over long distances : telemeter. The name has been used for a number of tele lenses from Leica.
ORIGIN: from Greek t?le- ‘far off.’



Three-dimensional = Having the three dimensions of height, width and depth. In photography and lens design, three-dimensional effect is also the perception of even small micro-details; the texture of skin can appear flat and dead or three-dimensional and alive. Also, selective focus (foreground and background out of focus) can change the perception of depth. Also see Perspective.

Three-dimensional = Having the three dimensions of height, width and depth. Melrose Avenue in Los Angeles. Leica TL2 with Leica 35mm Summilux-TL ASPH f/1.4. © 2017 Thorsten Overgaard.
Three-dimensional = Having the three dimensions of height, width and depth. Melrose Avenue in Los Angeles. Leica TL2 with Leica 35mm Summilux-TL ASPH f/1.4. © 2017 Thorsten Overgaard.



Leica T is the compact camera developed by Leica Camera in 2014 as a touch-screen operated camera that can take the Leica L mount lenses made for this camera and the Leica SL and Leica CL. This camera series was names Leica TL later. See my article Compact Leica Cameras for more.



The Leica TL2 (2017) with a 35mm Summilux-L f/1.4 lens, compared with the Apple iPhone 7 Plus. © Thorsten Overgaard.
The Leica TL2 (2017) with a 35mm Summilux-L f/1.4 lens, compared with the Apple iPhone 7 Plus. © Thorsten Overgaard.



TTL
(T)hrough (T)he (L)ens light metering, usually WRT the flash metering capabilities built into the R6.2, R8, R9, M7 & M6TTL cameras.



V-Lux is a series of compact SLR-like digital cameras by Leica Camera AG developed with Panasonic since 2006, starting with the Leica V-Lux 1 (2006), V-Lux 2 (2010), V-Lux 3 (2011), V-Lux 4 (2012), V-Lux Typ 114 (2014), V-Lux 5 (2018). See my article "Compact Digital Leica Cameras".
To add confusion, Leica also made a Leica V-Lux 20 in 2010, V-Lux 30 in 2011 and a Leica V-Lux 40 in 2012 that was a temporarily renaming of the Leica C-Lux series.



Vario- is the Leica Camera AG name for zoom lenses. Vario-Elmarit, Vario-Elmar and Vario-Summicron and so on.


The Leica 35-70mm Vario-Elmarit-R f/2.8 ASPH (left) and the Leica 35-70mm Vario-Elmar-R ASPH f/4.0 (right)



Ventilated shade on a 35mm of Elliott Erwitt's Leica MP camera.
Ventilated shade on a 35mm of Elliott Erwitt's Leica MP camera.

Ventilated Shade - A shade is a hood in front of a lens that provides shade from light going straight onto the lens from outside what you are photographing, which could cause internal reflections like flare, which would make the picture less contrasty.
The ventilated shade has holes so it doesn't obstructs the view from the viewfinder. In many of today’s mirrorless cameras where there is no viewfinder looking ver the lens, so there is no actual need for a ventilated shade; but they are considered classic or vintage looking and are still in high demand. It makes no difference for the purpose of the shade (to create shadow) if it is ventilated or not.


Ventilated Shade for the Leica Q. I make ventilated shades for most lenses and sell them from here.

Viewfinder a device on a camera showing the field of view of the lens. Also known as the German word "Messucher" (or Meßsucher).
1) A built-in viewfinder in a camera that simply show the frame you get when you look through the viewfinder.
2) A rangefinder viewfinder which is also used to focus the lens. In Leica M cameras two pictures has to meet and lay 'on top of each other' for the picture to be in focus.
3) An external viewfinder, usually on top of the camera in the flash shoe, so as to show the field of view of lenses vider than what the built-in viewfinder can show (15mm, 21mm, 24mm, 28mm etc viewfinders exist)
4) Very simple "aiming-devices" on top of a camera that is simply a metal frame without any optics. Just a frame, as for example very old cameras (the original Leica), or when using cameras in diving where you can't look through the camera.
5) A Electronic Viewfinder (EVF) that shows what the sensor sees "live".

WB = Short for White Balance:

White Balance = (often referred to as WB) in camera menus. See my aticle "Adjusting the White Balance in Photoraphy" for explanation, illustrations and examples.

WLAN = German short for WiFi. In camera menus, Leica may refer to WLAN, which is simply German for WiFi, (and for some reason they refuse to believe that the rest of the world doesn't call it for WLAN like they do). WLAN stands for wireless local area network.

X1 - The Leica X1 was released in September 2009, the Leica X2 in 2012, and Leica X Typ 113 was released in September 2014, all with a fixed 23mm f/1.7 lens. Leica X Vario Typ 107 and Leica X-E Typ 102 was released later. A Leica X-U underwater edition was released in 2026. See my article Compact Leica Cameras for more.

XML = Stands for extensible markup language, which is a way enclose information to a document about how to format it, and more.

XMP = Stands for extensible markup platform (also known as XMP sidecar) and is a standard developed by Adobe and standardized by the International Organization for Standardization ISO. XMP is a 'sidecar' to an image that contains the EXIF data (camera settings) as well as other data about the image recording and editing that would norally be in proprietary formats (only readable by certain software). XMP in short is a container enclosed with the image as a 'sidecar' that contains all available information (EXIF data about settings, IPTC data (who took the photo, copyright info, image captions, etc), but most noteable, the XMP allow you to include information about the editing that was performed to the raw or DNG file, so that when you open the image file in another editing software, the raw data, as well as information about the crop, exposure compensation and other editing you did to the photo, is included).
In Adobe Lightroom Classic, one should make sure to select that editing information is written to the XMP file of each image (go to Lightroom > Catalog Settings > Metadata and then click "Automatically write changes into XMP").

Zone System -A system of 11 greytones. Ansel Adams worked out the Zone System in the 1940's with Fred Archer. It may look as simply a grey scale (and it is) but it's the use that has troubled many. If you use a normal external light meter, it will give you the exact amount of light and you can expose your photograph based on that and it will be correct. The Zone System by Ansel Adams

What Ansel Adams basically did was that he studied (by measuring with a spot meter), what the exact grey tones were of the sky, the clouds, the sand, the water, the skin and so on at different times of the day.
You could say that he built up a conceptual understanding of how different materials of different colors and reflective surface would look in black and white at different times of day (or different light conditions). He also realized that a tone changes for the human eye depending on it's size and in which context of other tones it is seen.

In short, you could say that the Zone System is know how something would look in black and white when looking at a scenery. Some who have struggled with the Zone System have done so because they think it is a rule. It is not.

How Ansel Adams made New Mexico look:   How most people see New Mexico:

The artistic use of the Zone System.

Ansel Adams developed the Zone System to understand light for himself, but also as a fundament for teaching the light, exposure and making the final photograph. How will it look if you do the usual, and what will it look like if you manipulate it. But most interstingly; how do you work with light, cameras and photographic materials to achieve the look you envision.

The Zone System is meant as a basis on which to create your own aesthetic style and communication.  Photography is painting with light. The greyscale is our palette. Ideally we should have a conceptual understanding of the tones and be able to use them intuitive. That was his vision for us all.

Thorsten Overgaard in New York, explaining the Zone System in his "Street Photography Masterclass"
Thorsten Overgaard in New York, explaining the Zone System in his "Street Photography Masterclass".



Ø - Diameter. As in Ø49 for example which means that the filter diameter is 49mm for this lens (or if a filter is Ø49, it is 49mm in diameter and fits that Ø49 lens). Leica uses E to express their filters sizes, as in E49 for a 49mm filter size.









– Thorsten Overgaard




Index of Thorsten Overgaard's user review pages on Leica M9, Leica M9-P, Leica M-E, Leica M9 Monochrom, Leica M10, Leica M10-P, Leica M10-D, Leica M10-R, Leica M10 Monohcrom, Leica M11, Leica M 240, Leica M-D 262, Leica M Monochrom 246, Leica SL, Leica SL2, Leica SL2-S, as well as Leica TL2, Leica CL, Leica Q, Leica Q2 and Leica Q2 Monochrom:
Leica Digital Camera Reviews by Thorsten Overgaard
Leica M11 /M11-P 1 2 3 4 5 6 7 8
Leica M10 / M10-R
1 2 3 4 5 6 7 8                         Video
Leica M 240
P 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44
M 246 Monochrom 26 27 28 29
30
31


Leica M-D 262 1 2
Leica M9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20   M9-P
M Monochrom 20 21 22 23 24 25


Leica SL / SL2 1   3   5 6 7
Leica SL3 1
Leica Q 1
Leica Q2 / Q2M 1
Leica Q3 1 2
Leica TL2 1 2
Leica CL 1 2                                       Books


Thorsten von Overgaard
Thorsten Overgaard's Leica Article Index
Leica M digital camera reviews:   Leica L digital cameras:
Leica M11   Leica SL
Leica M11-P   Leica SL2
Leica M11 Monochrom   Leica SL2-S
Leica M10   Panasonic Lumix S5 II X
Leica M10-P   Panasonic Lumix S1R
Leica M10-R   Leica SL3
Leica M10-D   Leica TL2
Leica M10 Monochrom   Leica CL
Leica M9 and Leica M-E   Leica L-Mount lenses
Leica M9-P
Leica M9 Monochrom   Leica R digital cameras:
Leica M240   Leica R8/R9/DMR
Leica M246 Monochrom
Leica MD-262 and Leica M60   Small Leica mirrorless digital cameras:
    Leica Q3
    Leica Q2 / Leica Q2 Monochrom
Leica M film cameras:   Leica Q
Leica M6   Leica V-Lux
Leica M4   Leica C-Lux
Leica CL /Minota CLE (1973)   Leica D-Lux
    Leica Digilux 3
Leica M lenses:   Leica Digilux 2
Leica 21mm Summilux-M ASPH f/1.4   Leica Digilux 1
Leica 21mm Leica Super-Elmar-M ASPH f/3.4   Leica Digilux
Leica 21mm Super-Angulon-M f/3.4
Leica 28mm Summilux-M ASPH f/1.4   Leica R film cameras:
Leica 35mm Summilux-M ASPH FLE f/1.4 and f/1.4 AA   Leica R8 / R9
Leica 35mm Summicron-M ASPH f/2.0   Leica R4
Leica 35mm APO-Summicron-M ASPH f/2.0   Leica R3 electronic
Leica 50mm ELCAN f/2.0   Leicaflex SL / SLmot
Leica 50mm Noctilux-M ASPH f/0.95 FLE   Leica compact film cameras:
Leica 50mm Noctilux-M f/1.0   Leica Minilux 35mm film camera
Leica 50mm Noctilux-M f/1.2   Leica CM 35mm film camera
7artisans 50mm f/1.1   Leica R lenses:
Leica 50mm Summilux-M ASPH f//1.4   Leica 19mm Elmarit-R f/2.8
Leica 50mm Summicron-M f/2.0 "rigid" Series II   Leica 35mm Elmarit-R f/2.8
Leica 50mm APO-Summicron-M ASPH f/2.0   Leica 50mm Summicron-R f/2.0
Leica 50mm Elmar-M f/2.8 collapsible   Leica 60mm Macro-Elmarit f/2.8
Leica 75mm Noctilux-M ASPH f/1.25   Leica 80mm Summilux-R f/1.4
7artisans 75mm f/1.25   Leica 90mm Summicron-R f/2.0
Leica 75mm Summilux-M f/1.4   Leica 180mm R lenses
Leica 90mm Summilux-M ASPH f/1.5   Leica 250mm Telyt-R f/4.0
Leica 90mm APO-Summicron-M ASPH f/2.0   Leica 400mm Telyt-R f/6.8
Leica 90mm Summarit-M f/2.5   Leica 35-70mm Vario-Elmarit-R f/2.8
Leica 90mm Elmarit f/2.8   Leica 35-70mm Vario-Elmarit-R f/4.0
Leitz 90mm Thambar f/2.2
    Leica S digital medium format:
Leitz Cine lenses:   Leica S1 digital scan camera
Leica Cine lenses from Leitz Cine Wetzlar   Leica S2
    Leica S

History and overview:   Sony mirrorless digital cameras:
Leica History and Heritage   Sony A7
Famous Leica Usears   Fujifilm mirorrless digital cameras:
Leica Definitions   Fujifilm X-Pro 2
Leica Lens Compendium
Leica Camera Compendium   "Magic of Light" 4K Television Channel
The Solms factory and Leica Wetzlar Campus   Thorsten von Overgaard YouTube Channel

Photography Knowledge   Thorsten Overgaard books and education:
Calibrating computer screen for photographers   Thorsten Overgaard Masterclasses & Workshops
Which Computer for Photographers?   Lightroom Survival Kit
What is Copyright? Advice for Photogarphers   Lightroom Presets by Overgaard
Synchronizing Large Photo Archive with iPhone   Lightroom Brushes by Overgaard
Quality of Light   Capture One Survival Kit
Lightmeters   "Finding the Magic of Light" eBook (English)
Color meters for accurate colors (White Balance)   "Die Magie des Lichts Finden" eBook (German)
White Balance & WhiBal   "The Moment of Emotional Impact in Photography"
Film in Digital Age   "Freedom of Photographic Expression" eBook
Dodge and Burn   "Composition in Photography" eBook
All You Need is Love   "The Portrait Book" eBook
How to shoot Rock'n'Roll   "A Little Book on Photography" eBook
X-Rite   "After the Tsunami" Free eBook
The Origin of Photography   "Why do I Photograph?"
Hasselblad/Imacon Flextight 35mm and 6x6 scanner   "The Artist's Guide to the Galaxy" eBook
    "The Leica M11 Know-All eBook"
    "The Leica Q Know-All eBook"
    "The Leica Q2 Know-All eBook"
    "The Leica Q3 Know-All eBook"
    "The Leica M240 Know-All eBook"
    "The Leica SL3 Know-All eBook"
    The Digital Photographers Extension Course
    The Overgaard New Inspiration Extension Course I

Leica Photographers:
Henri Cartier-Bresson   Riccis Valladares
Rodney Smith   Christoåpher Tribble
Birgit Krippner   Martin Munkácsi
John Botte   Jose Galhoz

Douglas Herr   Milan Swolf
Vivian Maier   Jan Grarup
Morten Albek
Byron Prukston   Richard Avedon

The Story Behind That Picture:   Learn with Thorsten Overgaard:
More than 250 articles by Thorsten Overgaard   Leica M9 Masterclass (video course)
Thorsten Overgaard Workshop Schedule   Leica M10 Masterclass (video course)
    Leica M240 Masterclass (video course)
Leica Forums and Blogs:   Leica M11 Masterclass (video course)
Leica M11 / M240 / M10 User Forum on Facebook   Leica Q Masterclass (video course)
Jono Slack   Leica Q2 Masterclass (video course)
Sean Reid Review (reviews)   Leica Q3 Masterclass (video course)
Heinz Richter's Leica Barnack Berek Blog   Leica SL2 Masterclass (video course)
    Leica SL3 Masterclass (video course)
Connect with Thorsten Overgaard:   Leica TL2 Quick Start (video course)
Thorsten Overgaard on Instagram   Camera Excellence (video course)
Thorsten Overgaard on Threads   A Fly on the Wall (video course)
Thorsten Overgaard on YouTube   Mastering the Noctilux (video course)
Join the Thorsten Overgaard Mailing List   The Leica 50mm Lens Class (video course)
Thorsten Overgaard on Facebook   Street Photography Masterclass (video course)
    Adobe Photoshop Editing Masterclass
    The Photoraphers Workflow Masterclass
    Adobe Lightroom Survival Kit
    Capture One Survival Kit
    Overgaard Workshops & Masterclasses
    Overgaard One-on-One Training
    Thorsten Overgaard Archive Licencing
    Commision Thorsten Overgaard

The Von Overgaard Gallery Store:   Von Overgaard Ventilated lens shades:
Ventilated Shades "Always Wear A Camera"   Ventilated Shade for Current 35mm Summilux FLE
Camera Straps "Always Wear A Camera"   Ventilated Shade E46 for old Leica 35mm/1.4 lens
The Von Camera Bag   Ventilated Shade for Leica 50mm Summilux-M ASPH
The Von Mini Messenger Walkabout Camera Bag   Ventilated Shade E43 for older 50mm Summilux
Desk Blotters 'Always Wear A Camera"   Ventilated Shade for 35mm Summicron-M ASPH
Sterling Silver Leica Necklace   Ventilated Shade for older 35mm/f2 lenses
Software for Photography   Ventilated Shade E39 for 50mm Summicron lenses
Signed Thorsten Overgaard Gallery Prints   Ventilated Shade for Leica 28mm Summilux
Video Masterclasses   Ventilated Shade for current 28mm Elmarit-M
Photography Books by Thorsten Overgaard   Ventilated Shade for older 28mm Elmarti-M
Home School Photography Extension Courses   Ventilated Shade E49 for 75mm Summicron
    ventilated Shade E55 for 90mm Summicron
    Ventilated Shade for 28mm Summaron
    Ventilated Shade for 24mm Elmarit
    Ventilated Shade E60 for 50mm Noctilux and 75/1.4
Gallery Store Specials   Ventilated Shade for Leica Q, Leica Q2 and Leica Q3







Above: Axel Winter performing "Let Her Go" by Passenger in Sydney, April 2013. Recorded handheld on the street with the Leica M 240 and Leica 50mm Noctilux-M ASPH f/0.95 at f/0.95, using the internal camera microphone only.
© 2013 Thorsten Overgaard.




Leica logo

LEItz CAmera = LEICA
Founded 1849 in Wetzlar, Germany.



Leica M Type 240 Firmware update

Camera Raw 7.4 Beta and later
(with Leica M support)

Feel free to join the
Leica M Type 240 User Group
on Facebook

Leica M9 & Leica ME firmware















Also visit:

Overgaard Photography Workshops
Books by Thorsten Overgaard
Street Photography Masterclass Video
Adobe Photoshop Editing Masterclass
Adobe Lightroom Survival Kit
Lightroom Presets by Overgaard
Lightroom Brushes by Overgaard
Capture One Survival Kit

Capture One Styles by Overgaard
Signed Original Prints by Overgaard

Von Overgaard Gallery Store
Ventilated Shades by Overgaaard
Leather Camera Straps
Camea Bags
Leather Writing Pads
Sterling Silver Camera Necklace

Leica Definitions
Leica History
Leica Lens Compendium
Leica Camera Compendium
Leica 21mm Super-Elmar-M ASPH f/3.4
Leica 21mm Super-Angulon f/3.4
Leica 21mm Summilux-M ASPH f/1.4

Leica 28mm Summilux-M ASPH f/1.4
Leica 35mm Summilux-M ASPH f/1.4
Leica 35mm Summicron-M ASPH f/2.0
Leica 35mm APO-Summicron-M f/2.0

Leica 40mm Summicron-C f/2.0
Leica 50mm Noctilux-M ASPH f/0.95
Leica 50mm Summicron-SL f/2.0
Leica 50mm APO-Summicron-M f/2.0
Leica 50mm Summicron-M f/2.0
ELCAN 50mm f/2.0
Leica 50mm Summilux-M ASPH f/1.4
7artisans 50mm f/1.1
Leica 75mm Summilux-M f/1.4
Leica 75mm Noctilux-M ASPH f/1.25
7artisans 75mm f/1.25
Leica 80mm Summilux-R f/1.4
Leica 90mm APO-Summicron-M f/2.0
Leica 90mm Summilux-M f/1.5
Leica 35-70mm Vario-Elmarit-R f/2.8
Leitz Cine lenses
Leica L lenses

Leica M6

Leica M11-P
Leica M11
Leica M11 Monochrom
Leica M10
Leica M10-P

Leica M10-R
Leica M10-D
Leica M10 Monochrom
Leica M9, M9-P and Leica ME
Leica M9 Monochrom
Leica M 240
Leica M 240 for video
Leica M 262
Leica M-D 262

Leica M 246 Monochrom

Leica SL
Leica SL2
Leica SL2-S

Lecia SL3
Panasonic Lumix S1R
Leica R9 dSLR
Leica / Kodak/ Imacon digital back
Leica Q
Leica Q2
Leica Q2 Monochrom
Leica Q3
Leica CL
Leica TL2
Leica Sofort
Leica S medium format
Leica X
Leica D-Lux

Leica C-Lux

Leica V-Lux

Leica Digilux

Leica Digilux 1

Leica Digilux 2
Leica Digilux Zoom

Leica Digilux 4.3

Leica Digilux 3

Light metering
White Balance for More Beauty
Color Meters

Screen Calibration
Which computer to get
Sync'ing photo archive to iPhone
The Story Behind That Picture
"On The Road With von Overgaard"

Von Overgaard Masterclasses:
M11 / M10 / M9 / M240 / Q / Q2 / Q3 / SL2 / SL3 /TL2 /









Thorsten Overgaard
Thorsten von Overgaard is a Danish-American multiple award-winning photographer, known for his writings about photography and Leica cameras. He travels to more than 25 countries a year, photographing and teaching workshops to photographers. Some photos are available as signed editions via galleries or online. For specific photography needs, contact Thorsten Overgaard via email.

You can follow Thorsten Overgaard at his television channel magicoflight.tv.

Feel free to email to thorsten@overgaard.dk for questions, advice and ideas.




























Thorsten Overgaard photo workshops and masterclasses for Leica photographers and digital photographers









  · © Copyright 1996-2024 · Thorsten von Overgaard




© 1996 - 2024 Thorsten Overgaard. All rights reserved.



Web Analytics
