The Leica 90mm Summilux is a first in such a lightstrong 90mm lens, but it was not made for low light photography. It is the qualities of an f/1.5 design that makes this lens interesting.
I have had a hard time figuring out how this 90mm Summilux-M ASPH f/1.5 fits into the world of photography. On one hand, it is a 90mm lens with Noctilux qualities while on the other it is a lens that is so perfect it competes with one of the best lenses made for the Leica SL2 system, the Leica 90mm APO-Summicron-SL ASPH f/2.0.
This new 90mm lens is a magnificent piece of optics where the lens designers have decided to take the space necessary to implement perfect optics. The size of the lens is the exact same as the Leica 75mm Noctilux f/1.25, which makes these two lenses the largest M lenses.
But, once you design a lens for perfection with little effort to make it as compact as M lenses traditionally are, there are alternatives. There are other perfect lenses, and mainly the Leica 90mm APO-Summicron-SL ASPH f/2.0 (which fits on the Leica SL2) is quite a competitor, as well as the older Leica 90mm APO-Summicron-M ASPH f/2.0 (which fits directly on a Leica M camera).
The 90mm f/1.5 on a Leica M body is quite a package - in comparison the 90mm f/2.0 on a Leica SL2 is almost a compact camera. Which makes you wonder, why not go for the 90mm f/2.0 that is of similar design technology and philosophy, but also has APO? (The SL2 camera body with a 90mm APO lens would be $11,690 where the 90mm f/1.5 lens alone is $12,995).
What should justify the Leica 90mm Summilux-M f/1.5 is that it is the latest and greatest in the "Noctilux family". While the numbers (f/1.5 on this one and f/1.25 on the 75mm) are not the traditional f/1.0 or f/0.95 numbers we know from the 50mm f/0.95 Noctilux, the behavior of light through the lens' optics, and the extreme narrow depth of field are Noctilux characteristics.
The one thing the 90mm Summilux-M ASPH f/1.5 has going for it is that it is a Noctilux lens. In fact, it is hard to tell the difference between the 75mm Noctilux and the 90mm Summilux in most ways. They have the exact same size and weight.
When people see your photographs made with the 90mm f/1.5, the comment you mostly hear is, "Is that the Noctilux?" by which they refer to the look of the 50mm Noctilux. The 90mm Summilux has a lot of a “Noctilux feel” about the imagery it produces.
Optically, there are differences between the 75mm and 90mm of the Noctilux family, and maybe the 90mm is a winner of the two for portraits. I haven't compared the two in detail, and even I have a hard time seeing how the 75mm and 90mm would fit into the same household. They're so close you should pick one - whichever your heart says is your lens of the two. I simply can't see how they both are necessary to own.
"I have just been reading your eBook last night, which opened my eyes for more than
I have been thinking about before. You have a great sensitivity that I feel
connected with, and I enjoyed every word."
"I am reading your book, Finding the Magic of Light. Exactly what I crave."
"I find your books very helpful and thought-provoking."
"A must have. Personally useful for street photography."
In this easy to read and apply eBook, Thorsten Overgaard takes you on a journey to see, understand and simply use light.
"One of the most important ways to get an aesthetic and pleasant picture is to find the good light."
"Finding the Magic of Light"
New 2nd edition (April 2015)
eBook for computer and iPad. (87 pages) Only $47
Order now - Instant delivery. (Note: If you bought the first edition of this book, this new edition is free. Simply send an e-mail for your free update).

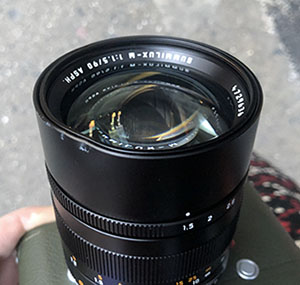

A dent in the 90mm Summilux-M ASPH f/1.4. Not something that can't be fixed at Leiac in Wetlar, but not pretty to look at.
For full disclosure I should mention that I dropped the 90mm on the asphalt just 20 minutes after I put it on the Leica M10-P. The strap lug fell off the left side of the M10-P, and while this was not a first for this camera, it produced a distinct "Klonk" when the 90mm hit the asphalt with the corner of the shade first, before the camera and all rolled over a few times. I experienced the obligatory flashback of my life but then realized that both the lens and I were still alive.
I picked the camera and lens up and kept using it. The shade and front tube (where the filter thread sits) clearly needed to be replaced by Leica in Wetzlar, but apart from that it all behaved like a Leica: You drop it on the concrete or hit a corner of a wall ... and then you keep using it.
A Leica is not indestructible, but it's damn close.
The 90mm Summilux is sharp and incredibly detailed. And it is not sharp in the ugly way where you have sharp edges. It is sharp in the beautiful sense of the word which best translates into clarity. Things are bright and clear, open if you will. You zoom in and it is all there, but with clarity rather than razor sharpness.
The out-of-focus areas are beautiful silky smooth and soft. The silky feel is so visible you cannot do other than to love it. The first lens from Leica that had this distinct silky look was the 50mm Summilux-M ASPH f/1.4, and particularly in black and white is it noticeable that these lenses are special. The 90mm Summilux has a beautiful silky feel to out-of-focus areas in color as well, which makes it stand out as very special. Perhaps the most likeable feature of the lens.
The mechanical handling of the 90mm Summilux-M ASPH f/1.5 is excellent. The aperture ring moves easily, but stays at the aperture stop you placed it at. It doesn't slide by itself (which it does if the aperture ring is too soft), and it is easy to click (not too hard). Focusing is soft and elegant, which it must be for you to easily fine-tune the focus of a lens with so narrow a depth of field. A lens with a stiff focusing ring is impossible to fine-tune as the force necessary always makes you turn it too far.
Based on pure memory of use of the two lenses, they seem very much the same. But in comparison (though I never do systematic side-by-side comparisons) the 75mm Noctilux seems to have more of a lively bokeh (the aesthetics of the out-of-focus areas) than the 90mm Summilux. Here are two photos from the same location in New York that Ritu Raj and I did with the 75mm and 90mm. As the 75mm was taken closer focus, the background is softer and more silky. But lively:
The 90mm has some beautiful flare control, by which I mean that the design suppresses any crazy flare-like rings, highlighted bubbles in the middle of the photos, flashes of light, stripes or lines. Fundamentally, the lens is designed to suppress any internal reflections of light between the optical elements and within the optical elements themselves. You look into the front of a lens, and the blacker it is, the better flare control it has.
Yet, it has a beautiful overflow of light in the edges and into some of the image if you provoke it really hard and balance your madness. It can give a really beautiful overflow of light, very smoky and soft, yet controlled.
What has caused roughly 30% or so of my workshop students go out and buy a $10,500 Noctilux lens after a workshop, not to mention how many readers of my articles and books have been able to persuade themselves to buy one, is the promise of something beyond earthly pleasures. The idea that this is something that reaches beyond the known universe and into something magical.
What makes 10% or so of Noctilux users never really like the lens, I don't know. But for the 90% or so of the Noctilux owners, this lens is easily recognized as something very special. Bending light in ways that seem to defy physical possibilities, and yet it holds the image with such detail and perfection it just makes it all that more mystical. How is this possible? You need not know, you only need $10,500 to be able to behold this ability to make almost anything look magnificently beautiful.
This is a unique thing for the Leica Noctilux lenses. Other brands trying to make f/0.95 lenses or "Nokton", "Speedmaster" or "Noct" lenses have never been able to touch that magic space that makes the Noctilux so special: The extremely high quality of the image coupled with an extreme dreamlike play with light.
The 75mm Noctilux f/1.25 tilted towards the perfected image, which I touched on in my two-page review and article about the 75mm Noctilux, as well as my talk with lens designer Peter Karbe. This, along with the size of the lens, was my reason for continuing to use the 50mm Noctilux f/0.95 rather than the 75mm Noctilux f/1.25.
The 90mm Summilux f/1.5 tilts towards the perfected image as well.
In other words, the attraction of the 50mm Noctilux image - the dreamlike part, or "rock'n'roll lens quality" as I also have called it (and called for more of in lens design) is not there.
Let me be clear: Anyone can make a 90mm f/1.5 lens and achieve paper thin depth of field and the extremely blurred background that comes with it. This is physics. It's as elementary as calculating how much power is needed to get a car of a certain weight to go from 0-100km in 3 seconds.
The excellence of the lens designer is what determines how the out-of-focus area will look. If these will have hard edges of highlights, 'stop-sign shaped highlights' (by which is meant six-sided highlights from the shape of the aperture rings), if the bokeh will be low contrast and silky smooth or high contrast and edgy. There's lots for the lens designer to master and control. The contrast, micro details, color accuracy, tonality, fall-off of contrast, flare control and much more.
The opti-mechanical designer also has his work cut out for him in making the mechanical movements of such a lens work perfectly, accurately and smooth.
But then, there is the magician who must add magic to all this technical perfection. In sending a car from 0-100km in 3 seconds, it's the sound, feel and smell of it that makes it something special and legendary. In lens design, it's the look and feel of the image. The 50mm Noctilux has this magic, and it’s a legendary lens as well. It has this beyond and above of any other lens design. This is what makes it mythical or mystical. The 75mm and 90mm 'Noctilux' lenses do not have that magic as part of them. You can create some of it by the use of long backgrounds and out-of-focus highlights in the background, have bright light sources hit just the right spot in the edge of the frame to create some film-like or maybe even Noctilux-looking magic.
But the 90mm lens was clearly made for perfection rather than unpredictable magic. On the edge of the possible, but with so good a grip of it all that you never really are in real danger.
Here is where we go off subject a bit, though it is highly related. There's a restaurant in Los Angeles that serves their famous Black Magic Lasagna, and it's just as magical as the many reviews promise, though it is not entirely black as some might expect. But some of the ingredients are black.
Black Magic Lasagna as served by the Italian chef at Pure Vita in Los Angeles.
It's a unique lasagna, and even if you have tried it, it would probably be impossible to make it just as magical as they do in that restaurant. It also comes with some bread to die for, just to make the experience more magical.
Things like these don't happen often. It's a mix of competence, luck and ideas that melt into something highly unique and desirable.
In many ways, whenever I open a box with a new lens inside it, I hope to find an experience like that black magic lasagna.
A scene from The Joker movie. Beautiful narrow focus, bokeh and colors. Another serving of Black Magic Lasagna.
The lens that nobody needs to have
I've had a hard time placing this lens. Why would one need it? The 90mm APO-Summicron-M ASPH f/2.0 is a great lens, one which I should use a lot more but seldom do. The 75mm Noctilux f/1.25 came before the 90mm Summilux-M ASPH f/1.5 as a natural answer to a dream many had of an exotic portrait lens. So where does that leave the 90mm lens?
I can't find any reason. And perhaps just because this is a lens nobody really dreamed about or wanted to come into existence ... this might be the very reason to get one and use it.
An exclusive choice of lens for you who find a way to use it.

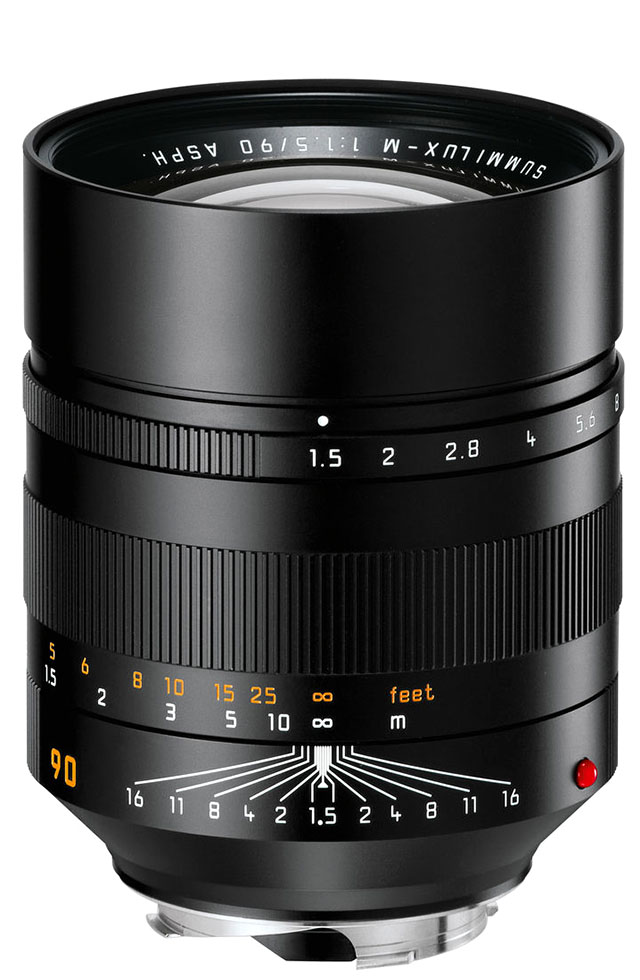

The Leica 90mm Summilux-M ASPH f/1.5 on Leica M10.
The alternative 90mm lens
The obvious 90mm lens to use on a Leica M is the 90mm APO-Summicron-M ASPH f/2.0 ($5,095). I've used the f/2.8 ($1,100 second-hand) and the f/2.5 lenses ($2,195), and then I went with the 90mm f/2.0 as the perfect 90mm lens.
If you want excellence and you want 90mm, the 90mm APO-Summicron-M ASPH f/2.0 is the optimum lens. If you want to take it further, the 90mm Summilux-M ASPH f/1.5 may be what you need ($12,995).
But don't forget the f/2.0 version in this era of excitement when a new lens was released. In fact, with the fairly little use that a 90mm lens gets by most of us, the f/2.8 is excellent and probably the most bang for your buck (not being produced anymore, they are around $1,100 second-hand). I love the 'soft but detailed' look of this 90mm f/2.8 lens (even the older versions), and it is compact, light-weight and produces great results (more of a Leica look than the f/2.5 and f/2.4 versions, in my opinion).
Once I've said this - and it is all true and makes a lot of sense - we both know that we always dream of wider aperture, and that is how the f/1.5 will remain the ideal and the dream for any 90mm user.
Hemingway has the famous quote, “Gradually and then suddenly” about how one goes bankrupt. This is in essence the route of 90mm lenses. First you start out cautious with a second-hand 90mm f/2.8, but then you get curious as to what the next one might produce in terms of images. This is how you will move your way through the 90mm range until you end up with the ultimate 90mm, the f/1.5.
If this sounds plausible for how you usually do things, hand over the $12,995 to the Leica dealer right away and go for the sudden bankruptcy rather than the gradual. The choice is that simple: gradually or suddenly.
The 90mm Summilux - along with the 75mm Noctilux – are the bulkiest and heaviest lenses for the Leica M. They both follow a sort of new philosophy, that larger is better. In terms of precision lens design, this is true, because the more space the lens designer has for the glass, the easier it is to make perfect optical results. There are also production advantages when lenses have the same sizes (as the 75mm Noctilux and 90mm do).
I wouldn't say it's a heavy lens to carry around, but it's bigger than any other, and it takes some time to get used to. It's tempting to leave it home for studio work, rather than taking it to the streets. But, once you get used to the size and the weight, which might take some days or weeks, it's just a fact. It’s your lens.
A 90mm APO-Summicron-M ASPH f/2.0 is lighter, but still as long, with a result that the lens doesn't feel compact and takes time to get used to.
The 90mm f/2.8 is a very light and compact lens in comparison, and has great optics by the way, though it is still as long.
That a 90mm lens is called 90mm lens is because there is 90mm from sensor plane to the center of focus inside the lens. Hence, most 90mm lenses are the same length (90mm), and most 50mm lenses the same length (50mm), just as a 400mm lens is usually 400mm or longer.
The diameter of a lens is decided by the f-stop in this simple way: f/2.0 means the focal length divided with two, and that is then the diameter of its optical elements. The 'hole through the lens' is the focal length divided by the maximum aperture. A 90mm f/2.0 lens will have a 45mm diameter of optics, and a 90mm f/1.0 would have to be 90mm in diameter. And the 90mm f/1.5 has a diameter of 60mm (plus the metal housing of the lens). There is just no physical way an f/1.5 lens could be less in diameter. The only way to make a lens smaller is to reduce the focal length to say 50mm and the f-stop to f/2.0 (which then makes the lens 25mm in diameter and 50mm in length).
The original 90mm Noctilux prototype
A 90mm lens was made in the 1970's, and as you can see, it's quite a chunky lens. This one was a prototype made for the US military. Some sort of spy tool to get close in the dark. The lenses were made by the Leitz factory in Canada back then and they were called ELCAN when made for specialized uses like this. (Read my article "Leica History" for more about ELCAN and Leitz Canada).
This Elcan-M 90mm f/1.0 was sold at Christie's auction in London for 20.900 £ a few years ago (with a Leica KE-7A from 1972 included). A similar lens was offered for sale by Arsenal Photo in 2008 for 23,000 £.
Why is it called a Summilux?
Summilux refers to the maximum lens aperture of f/1.4, which traditionally in Leica terminology has been named Summilux. The 90mm is an f/1.5 which also is classified as a "Summilux" lens.
There are many guesses how the name came about, a popular one being that the "summi" came from "summit" (summit means the highest point of a hill or mountain; the highest attainable level of achievement) while the "-lux" is added for "light". Highest quality light lens, if you will.
Why the 90mm Summilux-M is an f/1.5 lens and not an f/1.4 proably has size limitations as one of the reasons. The small (image) diffference in aperture would increase the lens diameter with 5mm, which in this context is quite a bit.
Where the 75mm Noctilux has closest focus range of 85cm, the 90mm Summilux has closest focus range of 1 meter. In reality, it will give approximately the same frame of closest focus.
The f/1.25 of the Noctilux vs the f/1.5 of the 90mm will result in a similar depth of field.
The floating element of the 90mm Summilux-M ASPH f/1.50 is kind of magic, though mostly one would use the lens wide open and not use the floating element. The floating element is that when you change f-stop to for example f.4.0, the lens elements move so as to compensate for any change in focusing, so that focusing will be accurately adjusted.
Focusing a 90mm is something that frightens most people. The framelines inside the Leica M viewfinder are so small that it seems one has to have really good eyes to see the focus. But that is an illusion, because the size of the focusing field itself is the same.
My experience with the 75mm Noctilux and 90mm Summilux is that the rangefinder offers better focusing than using an EVF. You have to trust that you can do it, which translates into not being overly concerned about it. Just focus and take your photos. Mostly it will work. Once you try it, you will find that it is true.
Using an EVF is the opposite, because here you have the possibility of putting great concern into focusing. But then there is a delay from your focus until the shutter release goes off (which is part of the electronic delay of using an EVF). In that small span of time, the camera or subject may move enough that the ever-so-precise and carefully orchestrated focus is lost.
The rangefinder offers direct views, fast reaction and no delay. It's just easier and better.
The main lines of new exciting lenses at Leica goes in two directions, sort of: A lineup of APO-lenses in the Leica SL department, and a series of Noctilux lenses in the Leica M department. It seems evident that the research team that make these new lenses are inspired both ways. The APO lenses design overflow to the Noctilux lenses and vice versa.
A portrait lens is generally thought of as a short tele lens, for example a 75mm or a 90mm. To me, the reason 90mm was labeled “a great portrait lens” is due to the advertising back when the first 90mm lenses were made by Leica about 90 years ago.
Back then, a 50mm lens had typically an f/2.8 or smaller aperture, resulting in a great deal of the background being visible. When the 90mm came out, the background would be out of focus and the subject isolated in the portrait. Hence, a great lens for portraits, providing a different look than what was seen with the eye.
Today, a 50mm lens at f/0.95 or f/1.4 makes it possible to blur out the background and isolate the subject.
Another reason for choosing a short 75mm or 90mm tele for portraits would be to avoid the nose becoming disproportionately big due to distortion (the face changes shape because the nose and things closer to the lens become proportionally bigger than the rest of the face), but that’s really not a concern until you go to wide lenses like the 35mm and 28mm.
So, what are we going to use our 75mm and 90m lenses for? That’s a really good question as I've used my great 90mm APO for 3% or less of my photos, and my “classic” 75mm Summilux for less than 1% of my photos. I know, because I looked through my archive for the last ten years. To my surprise, I’ve seldom used these lenses.
